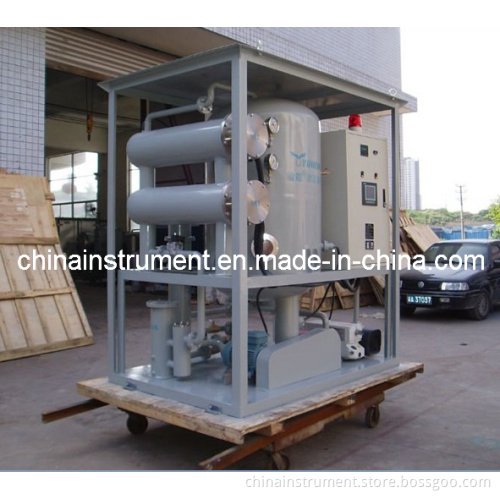

Jt-100 Coalescing Dehydration Turbine Oil Oil Purifier

I. Product Introduction
When various machine aggregates of steam turbine, hydraulic turbine are in operation, and their turbine oil which used to cool, lubricate and regulate the speed is easily to be contaminated and form more moisture, impurities, emulsifying etc, which badly damage the security and the lifetime of equipment.
Traditional treating way can not solve problems efficiently but cause waste and environmental pollution.
After being studied for years, we developed the technique of subsidence of the oblique plate, rotary separation flowing in vacuum and depth filtration in grade.
ZJC18.0KY-T Waste Ship Oil/Vessel Oil Filter in our company is very good at emulsion breakin. It can efficiently remove water, air and impurities thoroughly, and also make the turbine oil clear, improve maintenance level of machine aggregates.
II. Product Characteristics
1. The vacuum-segregating system employs particular spinning disk and stainless steel machine.
2. Using new type of heating equipment (Patent No. ZL02276238.8), this ship/vessel oil filter can reduce heating burthen and extend oil life.
3. Oil level control adopt photoelectric way of which the main components is imported from Switzerland. It has features of sensitive control. This ship/vessel oil filter can effectively prevent oil spurting out.
III. Technical Parameters
1. Working Capacity: 18000 Liters per hour;
2. Working Vacuity: -0.07-0.101 Mpa;
3. Working Pressure: ≤ 0.35 Mpa;
4. Working Temperature: 45-65 celsius;
5. Power Supply: 380V, 50Hz, Three phase, four wire;
6. Total Power: 4× 307w;
7. Diameter of Inlet Oil Pipe: 76mm;
8. Diameter of Oulet Oil Pipe: 64mm;
9. Dimention: 2300× 1700× 2300mm.
10. Weight: 2900 KG.
