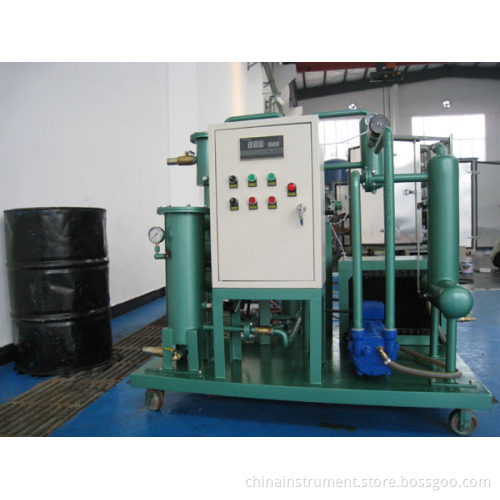

Zjc3.0 Ky-R Used Oil Filtration Plant for Lubricating Oil

I. Product Introduction
ZJC3.0 KY-R Used Oil Filtration Plant for Lubricating Oil is widely used in electric power, chemical engineering, traffic, railway, etc.
This used oil filtration plant is suitable to purify and filter waste oil which mixed too much water, impurities, gas and particle pollutants such as hydraulic oil, machine oil, coolant oil and various other lubrication oil.
This used oil filtration plant can effectively filter out pollutants and water in the oil through special design of the vacuum separation system and the impurity filtering system.
The used oil filtration plant is the best choice for machinery industries to save energy and maintain equipment.
II. Technical Characteristics
1. Advanced technology of vacuum-seperation system, we have got the patent and the patent number is No. ZL200420060968.5;
2. New Heating system, we applied a new heating system (patent No. Is No. ZL02276238.0) to reduce the burden of heating and extend the use life of oil.
3. Photoelectric oil level controller, its components are imported from Switzerland. It has a feature of sensitive and high presicision control. It can effectively prevent the oil from spurting out.
4. High quality and airproofed oil pump, it prevent the leakage of oil.
III. Technical Parameters
1. Working Capacity: 3000 liters per hour; (It can treat waste oil 3000 liters per hour. )
2. Vacuum Degree: -0.07~0.01 Mpa;
3. Working Pressure: Not higher than 0.6 Mpa;
4. Working Temperature: 45~65 ° C; (the temperature in the machine is keep between 45° C to 65 ° C, thus guarantee the safe operation. )
5. Power Supply: 380V, 50HZ(the power outlet should be three phase and four wire. )
6. Working Noise: Lower than 78 dB(A); (It is low noise working and no sound pollution to the evironment. )
7. Total Power: 30+3 kw; (This machine is enery-saving, and the power consumption is very low. )
8. Oil Inlet Pipeline Diameter: 32 mm;
9. Oil Outlet pipeline Diameter: 25 mm;
10. Net Weight: 950kgs; Machine dimention: 1900× 1400× 1950 mm
