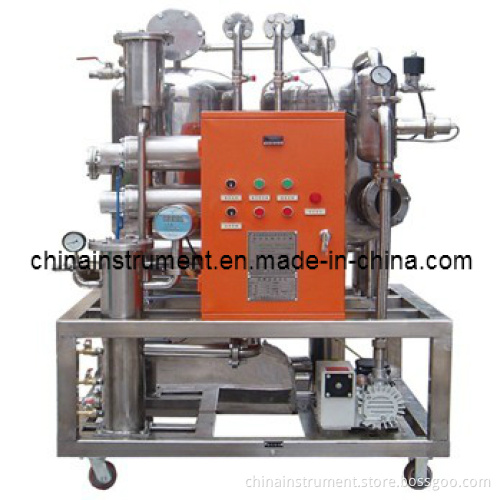

Kyj Fire-Resistant Oil Recycling Machine, Used Oil Machine

KYJ Fire-resistant Oil recycling Machine, used oil Machine


I Brief Introduction
The KYJ series Purifier specially for Fire-Resistant Oil is designed according to the requirements of fire-resistant oil. Through adopting materials compatible with fire-resistant oil, vacuum dehydration, new particle filter to elimination impurities, special absorbent to remove acid components from oil, this purifier can conduct preventive, deep purification and filtering the qualified fire-resistant, repurify slightly polluted fire-resisant oil, and refilter heavily polluted fire-resistant oil.
This series oil purifiers are necessary for fire-resistant oil customers. It is mainly used in the process of online operation, mobile oil filtration, new oil injection and so on. It can prolong the useful life of fire-resistant oil, maintain host safety and save energy.
Based on the different requirements of customers, this purifier can be further divided into two types; KYJ and KYJ-I. The former one is a multi-purpose type, combining vacuum dehydration and degassing, multi-stage precision filtration and absorbent regeneration. Its powerful functions and comprehensive oil treatment indexes make it the best choice of customers that have higher requirements for oil treatment.
II Features
1. The plant is all made of stainless steel with features of handiness, nice appearance and easy operation.
2. The plant adopts the elements of vacuum adsorption which could eliminate the acid of water in the oil.
3. Oil level control adopt photoelectric way which the main components is imported from Switzerland and have features of sensitive control, exactitude. Spurting oil phenomena is never appeared.
4. The exacting filter assembly employee the specialized ones which have a good effect for impurity controlling (could reach the NAS 5-6 grade). It will satisfy client's using requirement.

III Specification of Fire-resistant Oil recycling Machine, used oil Machine
Item
Parameter
Type
Unit
KYJ-10
KYJ-20
KYJ-30
KYJ-50
Technical Parameter
Flow Rate
L/MIN
10
20
30
50
Working Vacuity
Mpa
-0.09
Working pressure
Mpa
≤ 0.5
Temperature Range
° C
45-65
Power Supply
50Hz 380V 3-Phase 4-Wire (or as requested)
Total Power
KW
10
12
13.5
33
Inlet/Outlet Diameter
Mm
32
48
Size
Length
Mm
1200
1200
1200
1600
Width
Mm
940
960
1000
1200
Height
Mm
1550
1550
1600
2000
Weight
Kg
380
400
420
500
Oil Treatment Index
Water Content
Ppm
≤ 50
Filtering Accuracy
µ M
≤ 1
Cleanness
NAS
Grade 5
Acid Value
Mg KOH/g
≤ 0.03
Resistivity
Cm
≥ 5x109

IV Company Scan


We sell oil purifier machines as:
ZJA Series Double Stage Vacuum Transformer Oil Purifier
ZJB Series Double Stage Vacuum Transformer Oil Purifier
YNZSY Series Black Motor Oil/Engine Oil Recycling Machine
YNLTY Series Tire Oil Refining Plant
YNJBJ Series Lube Oil Blending Machine
YNCYJ Series Diese Oil Refining Plant
GF Series Dry Air Generator
ZJ Series Vacuum Pumping Unit
DYJC Series Online Turbine Oil Purifier
ZJC-T Series Vacuum Oil Purifier for Turbine Oil Purifier
JT Series Coalescing Dehydration Oil Purifier
ZJC-R Series Vacuum Oil Purifier for Lubrication Oil
KYJ Series Fire-Resistance Oil Purifier
ZJC-M Series Coal-Grinding Oil Purifier
BJ Series Oil Regeneration Machine
YL Series Mobile Precision Purifier and Refueling Unit
