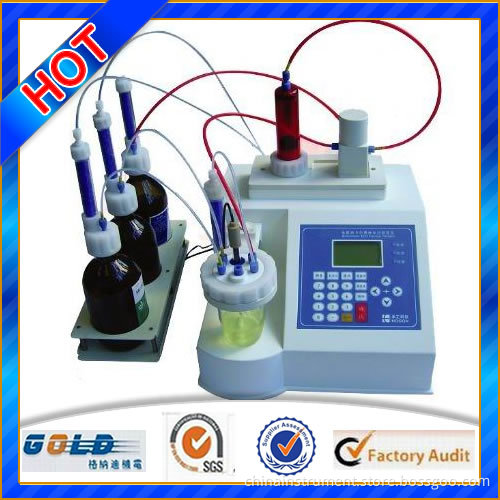

Oil Water Content Analyzer, Oil Moisture Testing Equipment (GDY-3000)

GDY-3000 Karl Fischer Titrator
Introduction:
V The instrument is designed and made as per the National Standard GB/T11133 "Test Methods for Water Content of Liquid Petroleum Products (Karl Fischer Methods)".
V It can determine water content in liquid, solid and gas within one minute. It shows test results directly and can calculate and print out test results in %, ppm and mg/l.
V Adopt a microprocessor for control, so it has characteristics of rapid determination speed, high precision, LCD display, and automatic print. It also has functions of self-diagnostics, menu selection. It can also communicate with PC.
V It is widely used in petroleum, chemicals, electrical, pharmaceutical, pesticide, university and other fields.
V It is a multifunctional, convenient, and automatic analysis instrument.
Features:
V Adopts new generation of micro-processor, double CPU design, so the test results can be A/D converter directly;
V Large LCD screen display;
V Full sealed titration cell to avoid influence of ambient humidity;
V 0-430mA large electrolytic current, so it with high sensitivity and fast analysis speed;
V Can test samples and analyse test results automatically;
V Can store 200 groups test results;
V Automatically print out ug, ppm, %, mg/L, sample No., operator, date, etc.
V With USB and RS232 communication ports, so it can communication with PC;
Specifications:
V Display: Large LCD screen;
V Testing method: Coulometric method Karl Fischer;
V Measurement range: 0.1ug-150mg;
V Water content range: 1ppm~100%;
V Sensitivity: 0.1ug;
V Electrolytic rate: 2.4ug/min;
V Accuracy: <0.3%;
V Electrolytic current: 0-400mA automatically control;
V Stirring rate: Adjustable;
V End-point indicate: Screen display, print out, alarm, end-point indicator light
V Printer: Thermal printer;
V Printing content: Ug, ppm, %, mg/L, sample No., operator, date;
V Self-checking function: Fault auto-analysis function;
V Special functions: Can communication with PC;
V Power: <40W;
V Working environment: 5~40 Centigrade, humidity<85%;
V Power supply: AC220V+/-10%, 50Hz+/-2.5Hz;
V Size: 370mm*250mm*170mm;
V Weight: 6kg
