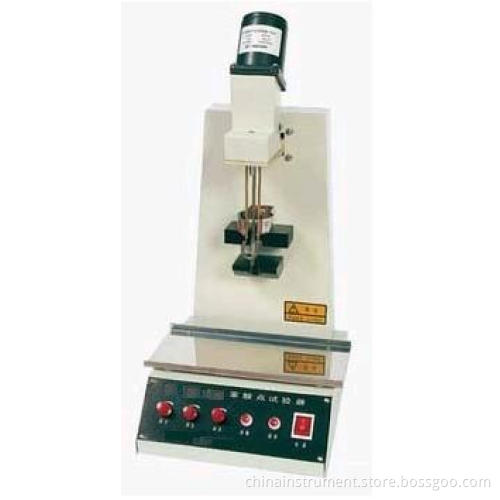

Gd-262 Aniline Point Tester for Oil

Purpose
The instrument is designed and made as per the National Standard GB/T262 "Test Methods for Aniline Point of Petroleum Products". It is suitable to determine the lowest temperature when a light petroleum product sample and the same volume of aniline dissolve with each other and become a single liquid phase. The lowest temperature is the aniline point of the sample. The instrument uses an electric heater to heat sample, adjusts controlling temperature manually, and stirs sample using a stepless speed regulation motor. It can detect end point automatically and make alarm using sound and light. It is reliable, convenient and accurate.
Technical parameters
1. Power supply: AC 220V± 10%, 50 Hz;
2. Measurement range: Room temperature~150celsius;
3. Stirring speed: 0~1200 r/min;
4. Heating power: 25 W;
5. Size: 360mm*250mm545mm;
