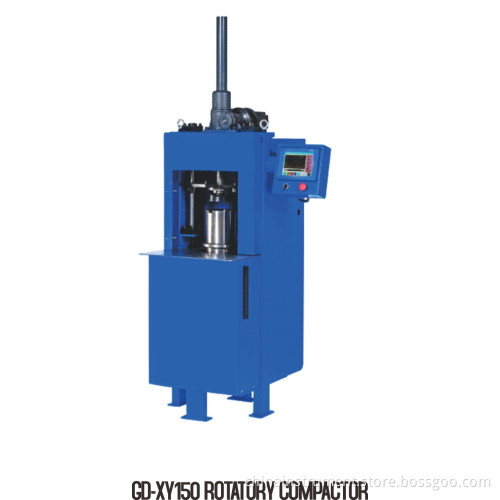

Asphalt Rotatory Compactor

Purpose:
GD-XY150 Rotatory Compactor is in accord with requirements of SUPERPAVE specification of FHWA. Its compaction degree meets requirements of AASHTO R35 and AASHTO PP35-98. It is an instrument to simulate actual road material volume and property. It is a shaping machine to make cylindrical test sample of hot-mix bituminous mixture by kneading methods under a constant pressure, at a fixed compaction angle, and a fixed compaction speed.
Technical parameters
1. Pressure range: 100 to 1000 KPa; Can be continuously adjusted;
2. Pressure accuracy:
(1) Less than ± 60Kpa (Compaction times from 1 to 5);
(2) Less than ± 18Kpa (Compaction times more than 5);
3. Rotation times:
(1) Positive rotation (as per the preset compaction angle): 0~1000 times;
(2) Negative rotation (compaction angle is 0° ): 0~500 times;
4. Range of compaction angle: 0.5° ~2.0° , the increment is 0.01° (It has been calibrated at 1.25° Before leaving factory);
5. Accuracy of compaction angle: Less than 0.01° ;
6. Compaction displacement range: 0~300mm;
7. Accuracy of compaction displacement: Less than 0.01mm;
8. Rotation speed: 30± 0.5 RPM;
9. Rated speed of motor: 1800 RPM;
10. Total height: 190 cm;
11. Weight: 370 kg;
12. Shipment weight: 410 kg;
13. Weight of mold: 7.4 kg
