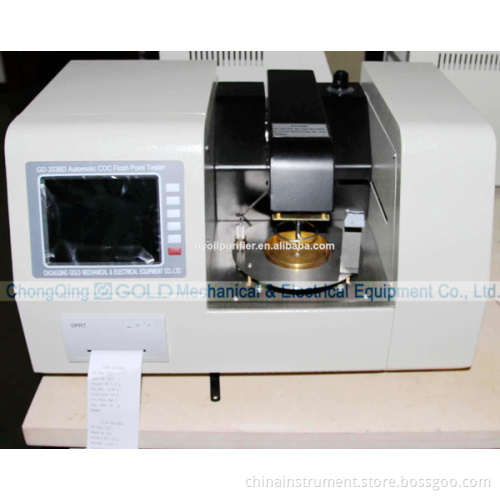

Gd-3536D Cleveland Open Cup Flash Point Tester

I---Characteistics:
1. The instrument is automatic with programmble temprature controlling function.
2. Its test arm can be raised up and lowered down automatically.
3. It can be used to mak determinatin for flsh point and fire point.
4. The instrument can automaticall control the measuement procedures, and make anlysis to the test data, save ≺int out the test data.
5. Show data on the colored LCD screen.
6. It can meet the requirmns of the new stanard issued in 2008.
7. It is the bst choice of similar instruments.
II---Main technical features
1. This instrument is a kind of fully-automatic instrument wich can do determination for both flash point and fire point.
2. This instrument adopts technology of single chip machine and LCD screen. Full English man-machine dialog interface. It can preset the parameters of expected flash point, sample mark number, atmospheric pressure, test date, etc. It has menu to prompt and input function of guide type.
3. This instrument adopts desktop structure and advanced design. The man-machine interface make it easy to use. And the test result is accurate. It can be widely used in railway, aviation, electric power, petroleum industry and colleges, scientific research institutes, measurement departments to do determination of flash point and fire point for petroleum products.
III---Main technical specifications and parameters
1. Power supply: AC(220± 10%)V, 50Hz
2. Temperature measurement: Range(room temperature~400° C)
Repeatability: ≤ 8° C
Reproducibility: ≤ 17° C
Accuracy: 0.1° C
3. Heating rate: Accord with GB/T3536 and ASTM D92
4. Igniting mode: Electric ignition, gas flame: 3.2mm~4.8mm
5. Ambient temperature: (10~40)° C
6. Relative humidity: ≤ 80%
7. Total power consumption: ≤ 500W
8. Overall dimension: 520mm× 380mm× 310mm
