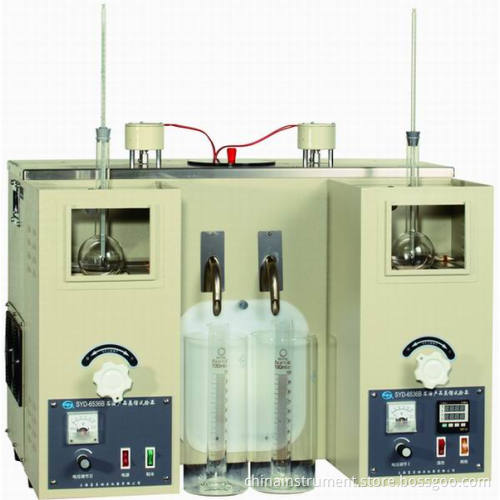

Petroleum Products Low Temperature Distillation Apparatus

GD-6536B Distillation Tester (low temperature Double units)
Purpose:
The instrument is designed and made as per the National Standard GB/T6536 "Test Methods for Distillation Characteristics of Petroleum Products at Barometric Pressure". It is suitable to determine natural gasoline, vehicle gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and similar petroleum products.
Technical parameters
1. Power supply: AC 220V+/-10%, 50 Hz;
2. Heating power of electric furnace: 1000 W*2;
3. Volume of graduated flask: 100 ml with scale division of 1 ml;
4. Distillation flask: 125 ml;
5. Thermometer: Total immersion rod type; Their temperature ranges are -2~300Centigrade, and -2~400Centigrade; Their scale divisions are 1 Centigrade;
6. Movable plate for electric furnace: Made of SiC; Their hole diameters are φ 32, φ 38, and φ 50.
7. Temperature controller:
(1) Temperature controlling range: 0Centigrade~60Centigrade;
(2) Refrigeration device: By a compressor;
(3) Temperature controlling accuracy: ± 0.5Centigrade;
(4) Temperature display mode: Digitally displayed by a LED;
8. Ambient temperature: <+35Centigrade;
9. Relative humidity: <85%;
10. Total power consumption: Not more than 5000 W;
