Introduction:

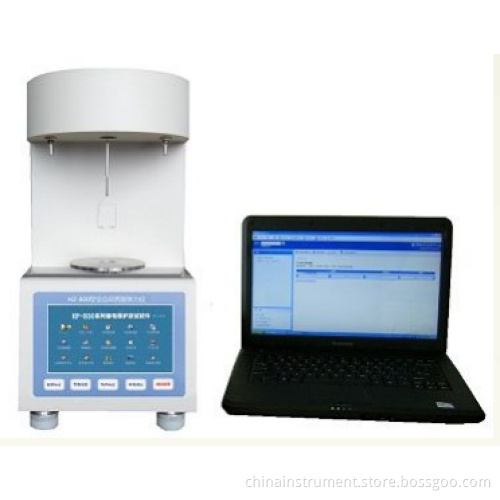

GD-800 Automatic Interfacial/Surface Tensiometer adopts platinum ring method, under non-equilibrium conditions, automatic control using internal microcomputer, determination of all kinds of liquid surface tension (liquid - gas interface) and mineral oil-water interfacial tension (liquid - liquid interface).
After pouring sample into the sample cup, just press the start button, the instrument will automatically complete the determination of the sample, and it can automatically calculate the
Tension value according to the input parameters.
Technical specifications
Display: Large-screen LCD in English
Measuring Mode: Platinum ring method
Platinum Ring Radius: R9.55, platinum wire: R0.3
Measurement Range: 2-200mN/m.
Sensitivity: 0.1mN/m
Accuracy: ± 0.1mN/m
Self-checking Function: Failure automatic diagnosis
Temperature Compensation: Automatic Temperature Compensation
Power Consumption: Less than 40W
Overall Dimensions: 185*260*360mm
Working Environment: Temperature10C-40C, humidity<80%
Power Supply: AC220V± 10% 50HZ± 2.5HZ
Weight: About 15KG
