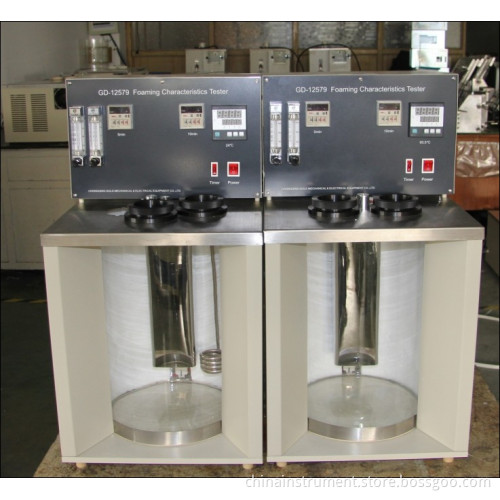

Gd-12579 Lubricating Oil Lab Equipment Foaming Characteristics

GD-12579 Lubricating Oil Lab Equipment Foaming Characteristics
Measuring Standards:
1. GB/T12579 Test Methods for Foaming Characteristics of Lubricating Oils.
2. ASTM D892 Standard Test Method for Foaming Characteristics of Lubricating Oils
Introduction:
GD-12579 Lubricating oil lab equipment foaming characteristics tester is suitable to determine foaming characteristics of lubricating oils, so that to evaluate the foaming tendency and foaming stability of lubricating oils.
Characteristics:
1. Tow baths including one high temperature bath and one low temperature bath.
2. Adjustable air flow rate.
3. High accuracy temperature controll.
4. Equiped with new type compressor refrigeration system
Technical Parameter
NoNameParameterRemark
1Power SupplyAC 220V± 10%, 50Hz
2Main Heater Power650W
3Auxiliary Heating Power1000W
4Refrigeration Power500W
5Air Flow Rate94ml± 5ml/minadjustable
6Temperature Range for High Temperature Bathroom temp. ~99.9° C
7Temperature Range for Low Temperature Bath5~99.9° C
8Temperature Control Accuracy± 0.5° C
9Timer5min, 10min
10Timing Accuracy0.01%+0.05sat 20° C
11Ambient Temperature-10° C~40° C
12Relative Humidity≤ 85%
13Total Power Consumption≤ 3000W
14Air Diffuser25.4mm
