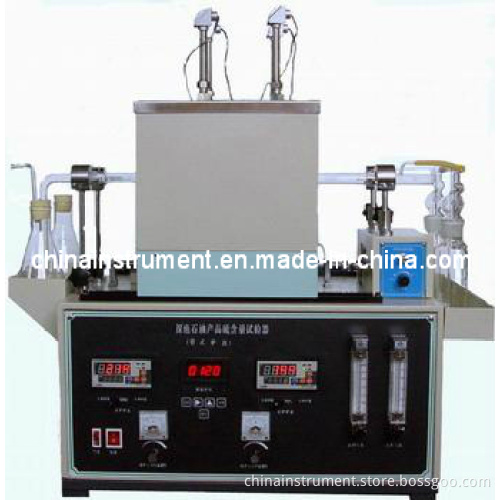

Gd-387 Dark Oil and Diesel Sulfur Analyzer

I---Brief Introdcution:
The instrument is designed and made as per the national standard of People's Republic of China GB/T387 Test Method for Sulfur Content of Dark Petroleum Products (Tubular Oven Methods).
It is used to determine the sulfur content in dark petroleum products, the sulfur content of which is more than 0.1% (m/m), as per GB/T387.
Completely burn the quartz boat containing sample in the purified high temperature air at a certain flow rate and absorb sulfurous acid anhydride and sulfuric acid anhydride created during this procedure using oxidized hydrogen and sulfuric acid. Then titrate sulfuric acid using standard sodium hydroxide solution.
II---Technical specifications and parameters
1. Power supply: AC 20V± 10%, 50Hz
2. Oven type and quantity: Horizontal type; Parallel double tubular oven
3. Chamber diameter of oven: Φ 22mm
4. Heating power: 1400 W× 2
5. Max temperature of oven: 950° C
6. Movement distance of oven: Not less than 135 mm
7. Air flow rate: ≥ 150 L/h
8. Max preset time: 99 minutes 59 seconds
