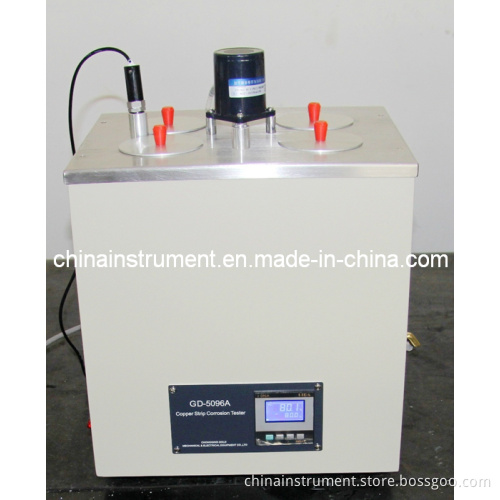

Gd-5096A Silver Strip and Copper Strip Corrosion Tester

I---Brief Introdcution:
The instrument is designed and made as per standards of GB/T 11143, GB/T 5096 and SH/T 0023.
It is a multipurpose corrosion tester for petroleum products.
The instrument can evaluate the anti-corrosive characteristic of inhibited mineral oil, especially the steam turbine oil mixed with water to iron parts as per GB/T 11143 Standard test method for rust-preventing characteristics of inhibited mineral oil in the presence of water.
It can also evaluate the corrosion degree of aviation gasoline, kerosene, aviation turbine oil, motor gasoline, tractor fuel, cleaning solvent, distillate fuel, lubricating oil, etc to copper and silver.
II---Main technical specifications and parameters:
1. Power supply: AC220V± 10%, 50Hz
2. Temperature sensor: Pt100 industrial platinum resistance
3. Temperature controlling range: Can be set 0° C~100° C casually
4. Temperature controlling accuracy: ± 1° C
5. Temperature display: LED digital display
6. Heating power of temperature control: 600W
7. Auxiliary heating power: 1000W
8. Time controlling range: Can be set 1min~24hour casually
9. Time display: LED digital display
10. Sample hole: 4 holes
11. Ambient temperature: Room temperature~35° C
12. Relative humidity: ≤ 85%
13. Overall Power Consumption: ≤ 1800W
