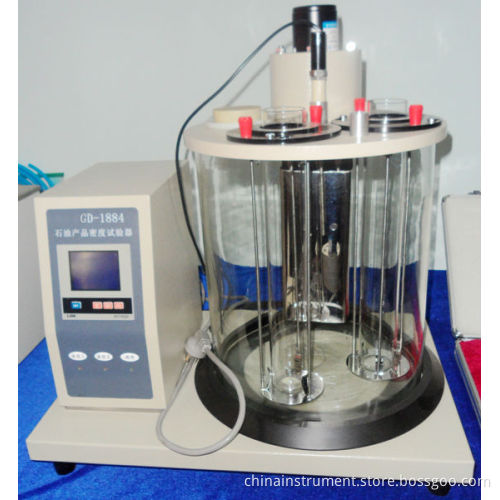

Gd-1884 Liquid Oil Density Meter

I---Brief Introduction:
The instrument is designed and made as per the national standard of People's Republic of China GB/T1884 Test Methods for Density of Petroleum Oils and Liquid Petroleum Products (Density Meter Method).
It is suitable to determine the density of crude petroleum and liquid petroleum products.
II---Main technical specifications and parameters:
1. Power supply: AC 220V± 10%, 50 Hz
2. Bath cubage: Dia. 300 mm× 340 mm
3. Test tube: 500 ml, 1000ml(1000ml need to be customized)
4. Heating power: 700 W, 1000 W
5. Temperature controller:
(1) Temperature controlling range: 0 ° C~100 ° C
(2) Temperature controlling accuracy: ± 0.2 ° C
(3) Temperature sensor: Industrial platinum resistance; Its scale number is Pt100
6. Thermometer: It is a total immersed mercury thermometer having scale division of 0.2 ° C
7. Ambient temperature: -10 ° C~+40 ° C, Temperature fluctuation ≤ 2 ° C
8. Relative humidity: ≤ 85%
