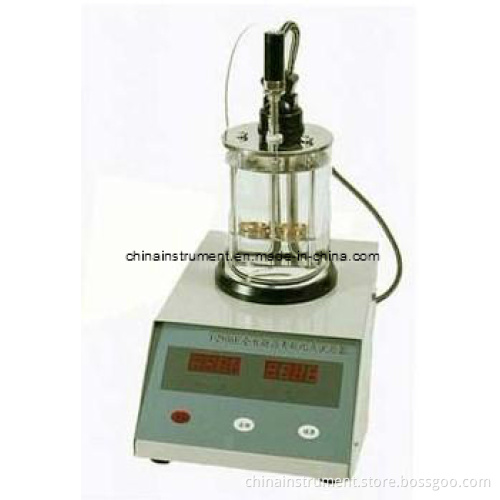

Gd-2806e Asphalt Softening Point Test Instrument

Measuring Standards:
1. GB/T4507 Test Methods for Softening Point of Asphalt
2. T0606 Asphalt Softening Point Test (Ring and Ball Methods)
3. JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering.
Application:
1. Petroleum asphalt.
2. Coal pitch.
3. Liquid petroleum asphalt.
4. Other asphalt.
Introduction:
GD-2806E Asphalt softening point test set is suitable to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and other asphalts.
Characteristics:
1. Computer control.
2. Linearity heating.
3. Automatic stirring.
4. Two samples test at the same time.
5. Automatic display test result.
6. Convenient, efficient, stable performance and reliable.
7. It is the desired instrument to determine the softening point of asphalt for laboratory.
Technical parameters:
NoNameParameterRemarks
1Power SupplyAC220V 50Hztolerance: -5%~10%
2Measuring Range+5° C~90± 0.5° C or +5° C~75± 0.5° C
3Temperature Resolution0.01° C
4Stirring Devicestirring speed ajustable
5Heating Rate5± 0.5° C/minafter 3mins
6Heating Power800W
7Breaker Bubage100ml
8Ambient Temperature≤ 35° Cno air convection
9Relative Humidity≤ 85%
10Power Consumptio≤ 850W
