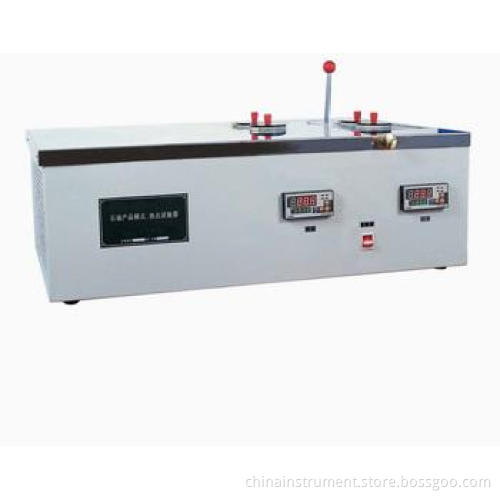

Lubricant Oil Cfpp (Cold Filter Plugging Point) Test Kit

Summary
GD-510E Lubricant Oil CFPP Test Kit is designed and made as per standards GB/T3535 Test Method for Pour Point of Petroleum Oils and SH/T0248 Diesel and domestic heating fuels- Determinaiton of CFPP(cold filter plugging point).
GD-510E Lubricant Oil CFPP Test Kit is suitable to determine solidifying point and cold filter plugging point of petroleum products.
I. Main technical features
1. The material of workbench is stainless steel. It is composed of cold trough I and cold trough II. Threr are two cold baths in each trough. The cold baths are equal in temperature.
2. It is no need to use coolant in the cold trough. The coolig rate is fast and efficiency is high. Temperature controller I and controller II control the temperature of trough I and trough II separately. The temperature in cold trough II can reach -70° C. The accuracy can reach ± 1° C.
3. The instrument adopts desk type structure. The design is simple and easy to use. The filter for cold filter plugging point is provided. Operator can do both solidifying point test and cold filter plugging point test after buying this instrument.
II. Main technical specifications and parameters
1. Power supply: AC 220 V± 10%, 50 Hz;
2. Temperature controlling range of cold trough:
(1) Cold trough I: Room temperature~-51 ° C, ± 1 ° C, the temperatures of two baths are equal.
(2) Cold trough II: Room temperature~-70 ° C, ± 1 ° C, the temperatures of two baths are equal.
3. Refrigeration system: A refrigeration compressor of new type
4. Ambient temperature: ≤ 30 ° C
5. Relative humidity: ≤ 85%
6. Power consumption: ≤ 1500 W
7. Overall dimension: 800mm*580mm*400mm
