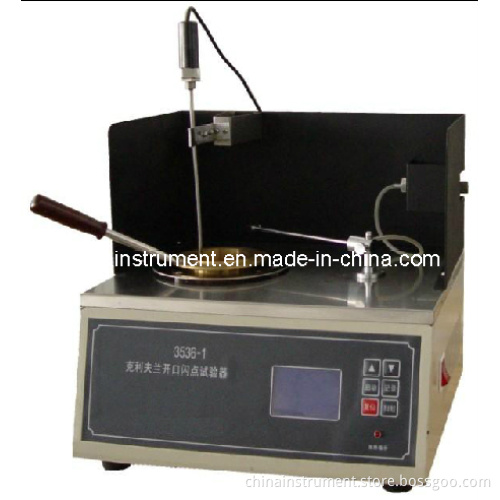

Gd-3536-1 Petroleum Products Cleveland Open-Cup Flash Point Tester

GD-3536-1 Petroleum Products Cleveland Open-Cup Flash Point Tester

I. Brief description
GD-3536-1 Cleveland Open-Cup Flash Point Tester is designed according the standards GB/T3536-2008 Test Method for Flash Point and Fire Point of Petroleum Products - Cleveland Open Cup Method, ASTM D92 and ISO2592.
GD-3536-1 Cleveland Open-Cup Flash Point Tester is applies to determine the flash point and fire point of petroleum products which flash points higher than 79 ° C except fuel oils.

II. Main Advantages
1. It adopts technology of single chip machine and LCD screen, English man-machine interface. The heating device is continuously stepless adjustable, Easy to set parameters.
2. The LCD screen has prompt menu, prompt type input for operation interface. It shows set parameters and real-time display sample temperature and other parameters. Press the record key when flash point appearing. The screen will display and save flash point value.
3. It is newly design, having small structure. Stainless steel working table make it elegant and beautiful. The operator can do determination as long as connecting with coal gas or other civil gas. Easy to use and results are exact.
4. It is equipped with wind-shelter and flame extinguishing cover which are accord with requirements of test.
5. Accurate heating rate. The instrument can do test automatically, Operator only need to observe the flash point appearing. The cost performance is high.

III. Main technical specification and parameters
1. Power supply: AC220V± 10%, 50Hz
2. Heating device:
(1) Heating power is adjustable in the range of 0~600W;
(2)The highest heating temperature is 400° C
3. Temperature display: LCD display various kinds of temperature parameters, 0~400° C, Accuracy: 0.1° C
4. Flame application device: Automatically scan
5. Temperature Sensor: PT100 Resistor Temperature Sensor
6. Ignition device:
(1) Ignition source: Coal gas (or any other combustible gas);
(2) Spout aperture: 0.60.8 mm;
7. Working Temperature: -10° C50° C
8. Relative humidity: ≤ 85%
9. Total power consumption: Not more than 650 W
