Gd-261-1 ASTM D93 Semi-Automatic Closed Cup Flash Point Tester

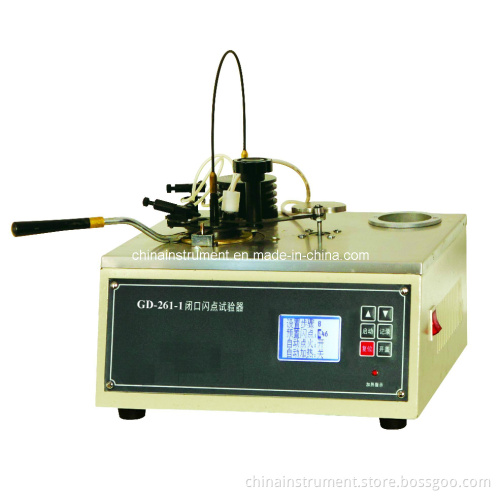

GD-261-1 ASTM D93 Semi-automatic Closed Cup Flash Point Tester


I. Purpose
GD-261-1 Pensky Martens Closed Cup Flash Point Tester is designed and made as per the National Standard GB/T261 "Test Methods for Flash Point of Petroleum Products (Closed Cup Methods)".
GD-261-1 Closed Cup Flash Point Apparatus is used to determine the lowest temperature of a petroleum product sample when the mixture of sample vapor and air around the sample contacts and flashes when heated in a closed cup under stipulated conditions. The lowest temperature is the flash point of the sample.
GD-261-1 Semi-auto PMCC Flash Point Tester adopts microprocessor techniques and equipped with advanced software, it can control temperature, stir sample, ignite, detect, and print out test data automatically. It has a six digits display.

II. Main Parameters

1. Power supply: AC( 220± 10% )V, 50Hz.
2. Heating device: (1) The furnace is silicon carbide material. Power is 600W.
(2) The heating power is adjustable from 0 W to 600W.
3. Heating rate: Procedure A: (5~6)° C/min
Procedure B: (1~1.6)° C/min
Automatically controlled
4. Stirring device: (1)Stirring motor: BYGH101 stepping motor
(2) Driving mode: Flexible shaft
(3) Shaft size: 8mm× 40mm
5. Stirring rate: (1) Procedure A: (90~120)RPM
(2) Procedure B: (250± 10)RPM
6. Igniting device: (1) Igniting source: Gas(or other civilian fuels, the same below)
(2) Electric ignition. Gas flame diameter: 3.2mm~4.8mm
7. Temperature testing probe: PT100
8. Ambient temperature: ≤ 35° C
9. Relative humidity: ≤ 85%
10. Maximum power consumption: 650W
III. GD-261 Series Semi-automatic Closed Cup Flash Point Tester

1. GD-261 Manual Pensky-martens Closed Cup Flash Point Tester
2. GD-261-1 ASTM D93 Semi-automatic Closed Cup Flash Point Tester
3. GD-261A Automatic Pensky-martens Closed Cup Flash Point Tester
4. GD-261D Full Automatic Pensky-martens Closed Cup Flash Point Tester
