Gd-5208 Automatic Rapid Low Temperature Closed Cup Flash Point Analyzer

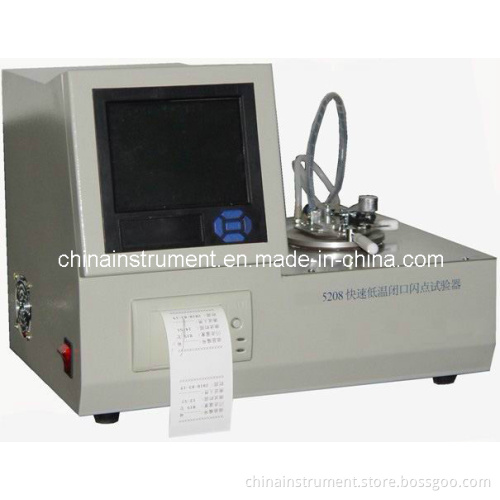

GD-5208 Automatic Rapid Low Temperature Closed Cup Flash Point Analyzer

I. Summary
GD-5208 Rapid Low Temperature Closed Cup Flash Point Analyzer is designed and made as per the National Standard of People's Republic of China GB/T5208 "Test Methods for Flash Point (Rapid Equilibrium Closed Cup Method)".
GD-5208 Rapid Low Temperature Closed Cup Flash Point Analyzer can be used in the field of petroleum, chemistry, paints, railway, aviation, power plant, inspection, military, and scientific research to determine flash point of petroleum products rapidly.
GD-5208 Closed Cup Flash Point Tester is suitable to make closed cup flash point determination for paints, adhesives, solvents, petroleum, and relative petroleum products, the flash points of which are in the range of 30° C~50° C. It can also meet the requirements of ASTM D3936, ISO 1523 and ISO 3679.

II. Main Technical Characteristics
1. It is designed as per GB/T5208 (Test Methods for Flash Point (Rapid Equilibrium Closed Cup Method)". It can determine closed cup flash point at a low temperature rapidly.
2. It adopts semiconductor refrigeration device and cooling water refrigeration device. It is small, convenient and with rapid refrigeration speed.
3. It needs fewer samples. The sample for each test is only 2 ml (For solid or semisolid sample, it is 4 ml);
4. The test can be automatically completed excepting flame ignition. The test data can be automatically printed.

III. More Closed Cup Flash Point Apparatus
GD-261A Automatic Pensky-Martens Closed Cup Flash Point Tester
GD-261D Fully-automatic Pensky-Martens Closed Cup Flash Point Tester
GD-261-1 Pensky-Martens Closed Cup Flash Point Tester
GD-261 Pensky-Martens Closed Cup Flash Point Tester
GD-5208 Rapid Closed Cup Flash Point Tester
GD-5208A Rapid High-temperature Closed Cup Flash Point Tester
GD-5208D Rapid Low-temperature Closed Cup Flash Point Tester

IV. Main Technical Specification and Parameters
