Gd-0206 Transformer Oil Oxidation Stability Tester

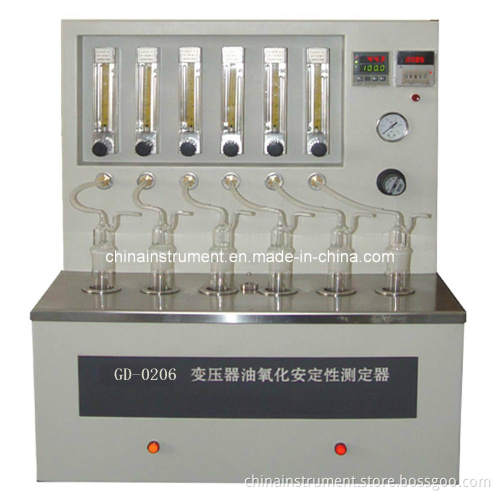

GD-0206 Transformer Oil Oxidation Stability Tester
I---Main Feature
Digital Temperature Control
Temperature control range: Ambient~160° C
Temperature control precision: ± 0.2° C
Metal Bath, 6 holes
Oxide Flow of every sample: 17mL/min± 0.1mL/min
Can be adjusted Independently
II---Brief Introduction
The instrument is designed and made as per the national standard of People's Republic of China GB/T0206 Standard test method for oxidation stability of transformer oil.
It is suitable to determine the oxidation stability of transformer oils.
The instrument adopts metal bath structure. No need to add water during determination.
Clean and eco-friendly. Easy to operate.
It is the preferred automated instrument to determine the oxidation stability of transformer oils for the units of petroleum mining, producing and using and other relevant colleges and scientific research institutions.
III---Main technical specifications and parameters
1. Power supply: AC 220 V± 10%, 50 Hz
2. Total power consumption: ≤ 1100W
3. Temperature controlling mode: Automatically controlled by digital temperature control meter
4. Temperature controlling range: Room temperature~160° C
5. Temperature controlling accuracy: ± 0.2° C
6. Temperature measuring component: Thermal resistance
7. Test sample: Can do 6 samples concurrently
