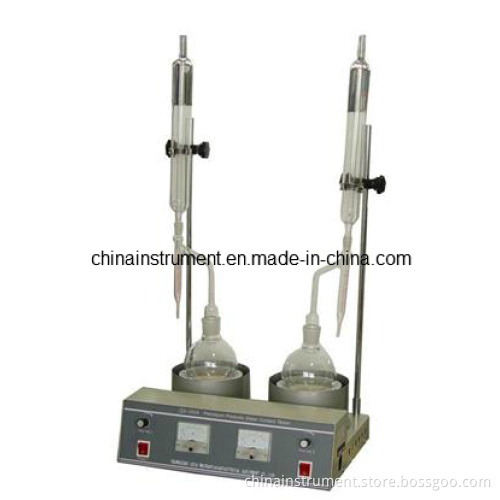

ASTM D95 Water Content Analyzer by Distillation Unit

Summary
GD-260A Water Content Analyzer is designed and made as per GB/T260 Test Method for Water Content of Petroleum Products. It is suitable to determine the water content of petroleum products according to the test method specified in GB/T260. It is also suitable to determine the water content of lubricating grease according to the test method specified in GB/T 512 Test Method for Water Content of Lubricating Grease. It adopts double-unit structure. It can do determination for two samples.

I. Main technical features
1. It is designed totally meeting the requirements of GB/T260.
2. The gripper is designed reasonably. The installation and dismantlement are convenient.
3. The heating power is continuously and stepless adjustable. The voltmeter displays the power intuitionally. The temperature control is reasonable.
4. It can do parallel test for two samples. The working efficiency is high.
II. Main technical specifications and parameters
1. Power supply: AC(220± 10%)V, 50Hz
2. Heating power of electric furnace: 1000W× 2
3. Heating control: Stepless adjustable by silicon knob
4. Ambient temperature: ≤ 35° C
5. Relative humidity: ≤ 85%
6. Total power consumption: ≤ 2200W
7. Overall dimension: 430mm× 320mm× 700mm(including the column)
(Notification: We can customize the electric jacket type for none naked fire as customer's need)
