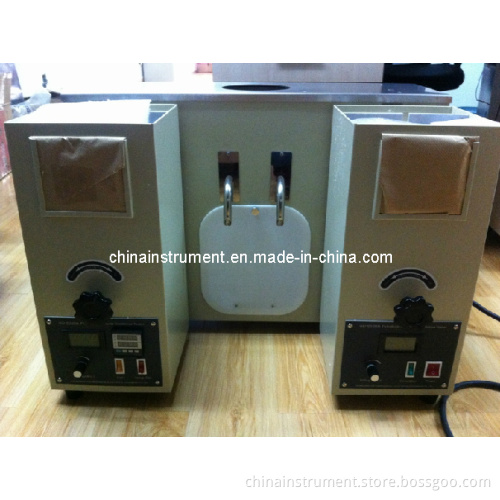

Gd-6536A Petroleum Products ASTM D86 Distillation Apparatus (Double Units)

GD-6536A Petroleum Products ASTM D86 Distillation Apparatus(Double Units)

I. Introduction
GD-6536A Petroleum Products ASTM D86 Distillation Apparatus is designed and made as per the National Standard GB/T6536 "Test Methods for Distillation Characteristics of Petroleum Products at Barometric Pressure". The Petroleum Products Distillation Tester is suitable to determine distillation characteristics of natural gasoline, vehicle gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and similar petroleum products.
GD-6536A Petroleum Products ASTM D86 Distillation Apparatus has two sets of distillation systems. It can make determination using one set of distillation system or make determination for two same sample or different sample using two set of distillation systems. This highly improves the working efficiency.
GD-6536A Petroleum Products ASTM D86 Distillation Apparatus is suitable to be used in companies with many samples to be determined. It also increases determination speed for normal customers. It is a desired distillation tester for petroleum products.

II. Main Technical Specifications
1. Power supply: AC(220± 10%)V, 50Hz
2. Heating power: 1000W× 2, continuously adjustable.
3. Receiving cylinder: 100ml, division value 1ml.
4. Distillation flask: 125ml, meet the requirements of GB/T 6536 and ASTM D86
5. Thermometer: (-2~300)° C and (-2~400)° C, division value 1° C
6. Flask support board: SiC, bore diameter φ 32mm, φ 38mm, φ 50mm.
7. Temperature controller: 1) Control range: (Ambient +10)° C~60° C
2) Accuracy: ± 0.5° C
3) Temperature display: LED
Note: The temperature control is to control the temperature of condensate in the condenser pipe.
8. Ambient temperature: ≤ 35° C
9. Relative humidity: ≤ 85%
10. Maximum power consumption: 2200W
11. Dimension: 760mm× 520mm× 500mm
