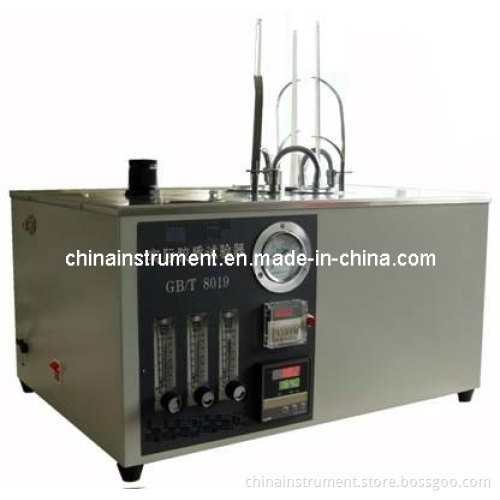

Gd-8019 ASTM D381 Metal Bath Existent Gum Tester for Gasoline and Aviation Fuel

GD-8019 ASTM D381 Metal Bath Existent Gum Tester for Gasoline and Aviation Fuel

I. Summary
GD-8019 ASTM D381 Metal Bath Existent Gum Tester is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381Standard test method for gum content in fuels by jet evaporation.
GD-8019 ASTM D381 Metal Bath Existent Gum Tester is suitable to determine the existent gum content of aviation gasoline and motor gasoline(Not suitable to determine the existent gum content of aviation turbine fuel)

II. Main Technical Features
1. It equips a specially designed heating bath. The gas circuit is designed reasonably and the effect of evaporation is good.
2. The material of working bench is stainless steel. It has 3 sample holes. Each jet flow can be adjusted and controlled by an independent flowmeter. It can do 3 determinations at the same time.
3. The instrument is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.

III. Main Technical Specifications
1. Power supply: AC(220± 10%)V, 50Hz, 2500W
2. Dimension of evaporation bath: φ 260mm× 130mm
3. Sample positions: 3 positions
4. Dimension of sample positions: φ 51mm× 70mm
5. Working temperature: (160~165)° C
6. Temperature control: Automatic
7. Temperature display: Digital display
8. Flow display: Displayed by a ball float type flowmeter.
9. Working pressure of air reducing valve: 0.035MPa.
10. Air source: External connection, over (1000± 150)mL/s
11. Dimension: 590mm× 480mm× 340mm(Thermometer holder is not included)
(Note: A air compressor is equipped)
