Copper Strip Corrosion Test Kit ASTM D130

I. Summary

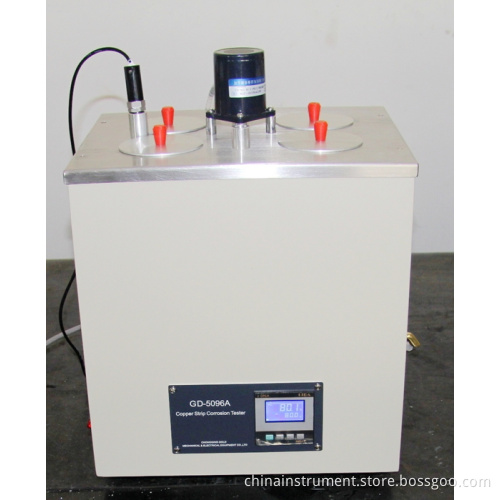

GD-5096A Copper Strip Corrosion Test Kit is designed and made as per the national standard of People's Republic of China GB/T 5096 Test Method for Detection of Copper Corrosion from Petroleum Products by the Copper Strip Tarnish Test.
GD-5096A Copper Strip Corrosion Test Kit is suitable to determine the corrosiveness to copper of aviation gasoline, aviation turbine fuels, automotive gasoline, tractor fuels, washing solvent, kerosene distillate, lubricating oil, and other petroleum products. It has functions of temperature controlling, automatic timing and alarming.
II. Main technical specifications and parameters
1. Power supply: AC 220 V± 10%, 50 Hz
2. Temperature sensor: Industrial platinum resistance, scale number is Pt100
3. Temperature controlling range: Room temperature~100 ° C
4. Temperature controlling accuracy: ± 1 ° C
5. Temperature display mode: LED display
6. Main heating power: 600 W
7. Auxiliary heating power: 1000 W
8. Time controlling range: 1 minute~24 hours
9. Time display mode: LED display
10. Sample hole: 4 pieces
11. Sample tested at one time: 4 pieces~12 pieces
12. Ambient temperature: Room temperature~35 ° C
13. Relative humidity: ≤ 85%
14. Total power consumption: ≤ 1800 W
