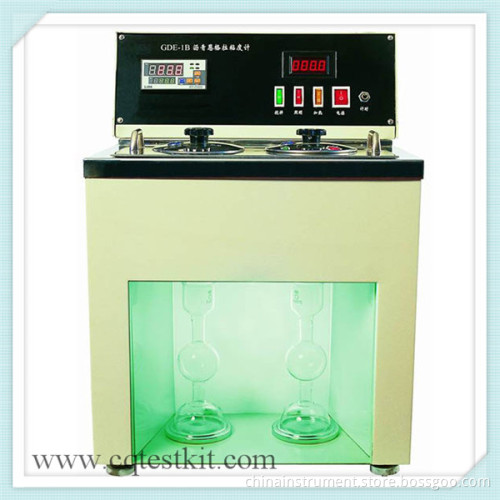

Gde-1b Beautiful Digital Engler Viscometer

GDE-1B Engler Viscometer (Doub Units)
Summary:
This instrument is suitable to determine the rate of time(seconds) of liquid flow out from Engler viscometer and time(seconds) of distilled water flow out at 20º C under certain temperature and cubage. This rate is the Engler viscosity. Unit is Engler degree.
Main Technical Features:
V The instrument adopts desktop, all-in-one and double inner crucible structure. Both of inner and outer crucible adopt stainless materials. Inner crucible has been specially processed. The smooth finish corresponds with the test requirements.
V The flow out time adopts digital display. Can do parallel determination for 2 samples at the same time. Easy to use and efficiency is high.
V The temperature controller adopts digital display temperature controller with P, I, D position regulatory function. Easy to set the parameters and temperature controlling precision is high.
Main Technical Specifications:
V Power supply: AC(220± 10%)V, 50Hz
V Standard water value: (51± 1)s
V Testing temperature: (0~100)º C
V Temperature control accuracy: ± 0.1º C
V Engler viscosity thermometer: Correspond with GB/T 514
V Specification of measuring flask: (200± 0.2)ml
V Inner crucible: Stainless steel material
V Timing: Max 999s
V Timing mode: LED electronic timing
V Heating power: 700W
V Ambient temperature: (-10~+40)º C
V Relative humidity: ≤ 85%
V Dimension: 430mm*410mm*620mm
V Maximum power consumption: 800W
