Petroleum Products Kinematic Viscometer, Manual Kinematic Viscosity Tester

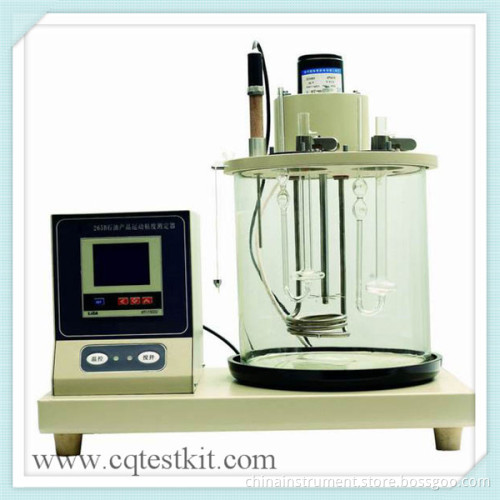

GD-265B Petroleum Products Kinematic Viscosity Tester
Summary:
This instrument is suitable to determine kinematic viscosity of liquid petroleum products (Newtonian fluids) at a constant temperature as per the stipulation in the national standard of People's Republic of China GB/T265 Petroleum products -Determination of kinematic viscosity and calculation of dynamic viscosity.
Main Technical Features:
V This instrument adopts a type of all-in-one machine. The control switch adopts light-touch mode. It has the features of novel design, compact structure and beautiful appearance.
V This instrument adopts LCD temperature controller. The temperature control is rapid. The response is fast. The overshoot is small. The temperature control accuracy can reach ± 0.1º C.
V This instrument adopts hard glass bath and electric stirring device. Easy to observe the sample. The temperature in water bath is uniform.
Main Technical Specifications:
V Power supply: AC(220± 10%)V, 50Hz
V Heating device: Electric heating, power 600W
V Stirring motor: Power 6W, rotating speed 1200RPM
V Temperature control range: Room temperature~100º C
V Temperature control accuracy: ± 0.1º C
V Temperature sensor: RTD, Pt100
V Ambient temperature: Room temperature~35º C
V Relative humidity: ≤ 85%
V Capillary viscometer tubes(Pinkevitch viscometer): 7 pieces in total, inner diameter for each: 0.6mm, 0.8mm, 0mm, 2mm, 5mm, 0mm, 5mm
Dimension: 500mm*310mm*500mm Net Weight: About 16Kg
