Petroleum Products Vapor Pressure Tester ASTM D323 Reid Method

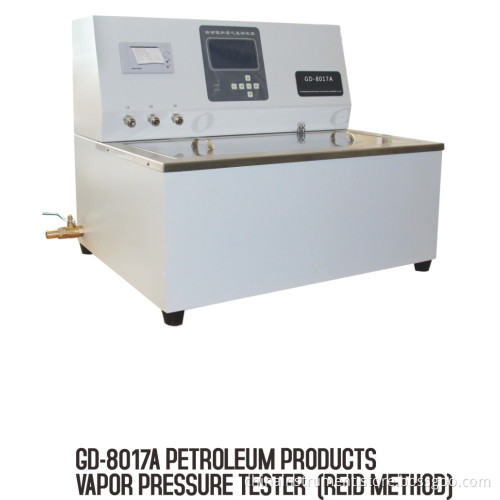

GD-8017A Petroleum Products Vapor Pressure Tester (Reid Methods)
Standard
1. GB/T 8017 "Test Methods for Vapor Pressure of Petroleum Products (Reid Methods)"
2 ASTM D323. Standard Test Method for Vapor Pressure of Petroleum Products (Reid Method)
Purpose:
The vapor pressure tester is suitable to determine vapor pressure of gasoline, volatile petroleum
And other volatile petroleum products.
The reid method vapor pressure tester can not be used to determine vapor pressure of LPG
(liquefied petroleum gas).
Main parameters
1. Power supply: AC 220V± 10%;
2. Test bomb: Can make determination for two samples or a group of parallel samples;
3. Bath temperature: 37.8º C;
4. Temperature controlling accuracy: 0.1 º C;
5. Heating power (Maximum): 1400 W;
6. Rotation mode of test bomb: Reciprocating rotation along horizontal axle; The angle is 350 degree.
7. Pressure range: 0~200kpa;
8. Ambient temperature: -10~35º C;
9. Relative humidity: ≤ 85%;
10. Total power consumption: ≤ 1500W;
