Gasoline Distillation Tester ASTM D86

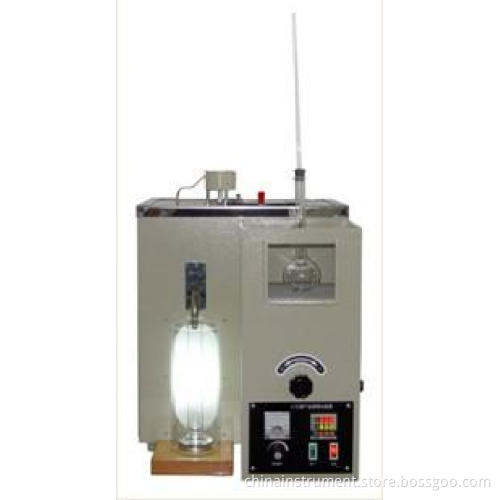

GD-6536C Distillation Tester (Low Temperature)
Standard:
1. GB/T6536 "Test Methods for Distillation Characteristics of Petroleum Products at Barometric Pressure".
2. ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure
The petroleum products distillation testeris suitable to determine distillation
Characteristics of gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and similar petroleum products.
The gasoline distillation tester is a low temperature petroleum products distillation test
Using single distillation system. It is a desired low temperature petroleum products distillation tester.

Technical characteristics
1. The electrics parts are controlled by controlling case.
2. The controlling case is made of cold rolled steel. It has an observation window and a built-in furnace. The electric part is at the lower section of the controlling case.
3. The furnace part is composed of SiC furnace base, heater of 1000W/220V, and SiC plate. The position of furnace can be adjusted by rotating the up and down knob on the controlling case, so that you can adjust the relative position of distillation flask and the opening of condensation tube. The heating power can be adjusted by rotating the voltage adjusting knob.
4. The refrigeration bath is made of stainless steel. It contains heating device, refrigeration device, temperature measuring device and stirring device. The stirring device is driven by a motor.
5. The dimension of condensation tube complies with GB/T6536.
Main technical specification and parameters
