Gd-706 Petroleum Products Ignition Point Tester

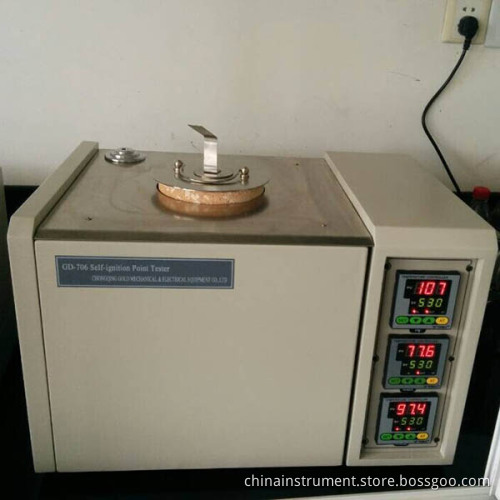

GD-706 Self-ignition Point Tester
Summary:
This instrument is designed and made as per standards DL/T706-99, IEC79-4: 9
It is used to determine the lowest temperature of fire resistant oil and other special oils when burning in a flask.
Main Technical Features:
High precision AI temperature controller. The heating is uniform. Good accuracy. Three-point temperature detection: Center of bottom, center on side wall and top.
Main Technical Specifications:
Temperature range: Room temperature~800º C;
Temperature control accuracy: Temperature difference ≤ 1º C among the three points: Center of bottom, center on side wall and top of flask;
Conical flask: 200 ml;
Ambient temperature: Room temperature~50º C;
Relative humidity: <80%;
Power supply: AC(220± 10%)V, 50Hz;
Maximum power consumption: 2000W;
Dimension: 540mm*310mm*270mm;
