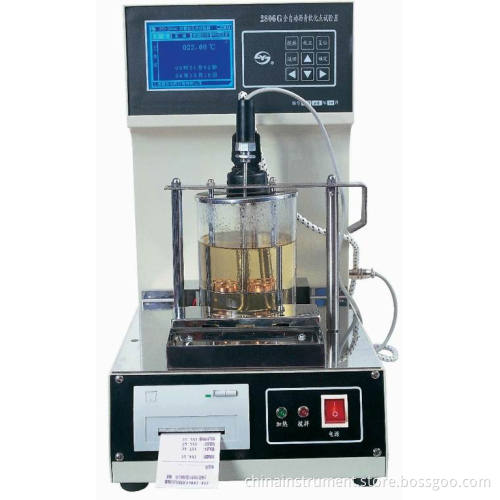

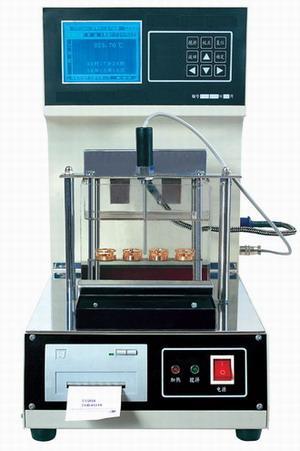

Gd-2806g Automatic Asphalt Softening Point Tester
- Payment Type:
- L/C, T/T, D/P
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Chongqing |
|---|---|
| Payment Type: | L/C, T/T, D/P |
Product Description
Product Description
1.Automatic ,intelligent type
2.Two samples
3.Can communicate with pc
4.can automatic print
Product characteristic
The instrument is designed and made as per the National Standard GB/T4507 "Test Methods for Softening Point of Asphalt". It is suitable to determine the temperature of bitumen in condition of heated and soften down up to 25.4 mm
1.It is suitable to determine softening point of petroleum asphalt, coal pitch, liquid asphalt and other asphalts.
2.The instrument adopts computer for control, electron photo-electricity for measurement, and LCD for display.
3.The test data can be printed out by a micro-printer.
4.It has characteristics of linearity heating, and uniform stirring.
5.It can also make determination for two samples at the same time and it can 6.determine the softening point automatically.
7.It is highly automatic, convenient, rapid, and reliable. It is the intelligent instrument for softening point determination.
Technical specification:
1. Power supply: AC 220 V (Tolerance: -5%~+10%), 50 Hz;
2. Measurement range:
(1) The softening point is below 80 Celsius, and take distilled water as heating medium, +5 ~+80 Celsius;
(2) The softening point is over 80 Celsius, and take glycerin as heating medium, +32 ~+160 celsius;
3. Temperature resolution: 0.01 Clesius;
4. Heating rate: It can be adjusted to 5.0±0.5 Clesius/ min after 3 min;
5. Test data: Displayed by a LCD and printed by a printer;
6. Heating power: 600 W;
7. Ambient condition: room temperature should be lower than 35 celsius and keep stable without any air convection;
8. Relative humidity: ≤85%;
9. Total power consumption: not more than 700 W;
2.Two samples
3.Can communicate with pc
4.can automatic print
Product characteristic
The instrument is designed and made as per the National Standard GB/T4507 "Test Methods for Softening Point of Asphalt". It is suitable to determine the temperature of bitumen in condition of heated and soften down up to 25.4 mm
1.It is suitable to determine softening point of petroleum asphalt, coal pitch, liquid asphalt and other asphalts.
2.The instrument adopts computer for control, electron photo-electricity for measurement, and LCD for display.
3.The test data can be printed out by a micro-printer.
4.It has characteristics of linearity heating, and uniform stirring.
5.It can also make determination for two samples at the same time and it can 6.determine the softening point automatically.
7.It is highly automatic, convenient, rapid, and reliable. It is the intelligent instrument for softening point determination.
Technical specification:
1. Power supply: AC 220 V (Tolerance: -5%~+10%), 50 Hz;
2. Measurement range:
(1) The softening point is below 80 Celsius, and take distilled water as heating medium, +5 ~+80 Celsius;
(2) The softening point is over 80 Celsius, and take glycerin as heating medium, +32 ~+160 celsius;
3. Temperature resolution: 0.01 Clesius;
4. Heating rate: It can be adjusted to 5.0±0.5 Clesius/ min after 3 min;
5. Test data: Displayed by a LCD and printed by a printer;
6. Heating power: 600 W;
7. Ambient condition: room temperature should be lower than 35 celsius and keep stable without any air convection;
8. Relative humidity: ≤85%;
9. Total power consumption: not more than 700 W;
