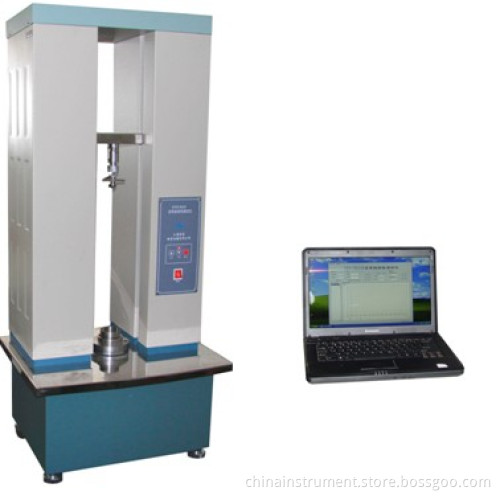

Gd-0624 Bitumen and Bituminous Mixture Tenacity Measurement Set

GD-0624 Tenacity Tester
Feature
Its dragging length can be selected from 300 mm and 610 mm. The dragging part adopts a high precision thread rod, so it runs stably and reliably with high test accuracy.
Equipped with test software, it can plot weight-deformation curve and calculate tenacity of asphalt automatically.
For unusually used weight-deformation curve, it allows the users to make reasonable modification for the tenacity curve. It is advanced, delicate and easy to be operated.

Technical parameters
1. Dragging speed: 500mm/min± 10mm;
2. Maximum load: 1000 N;
3. Non-linearity error of dragging force: <0.5%;
4. Sampling interval for dragging force: 0.5 mm;
5. Maximum dragging length: 610 mm;
6. Power supply: AC 220V± 10%, 50 Hz;
7. Total power consumption: Not more than 500 W;
8. Size: 520× 400× 1220;
