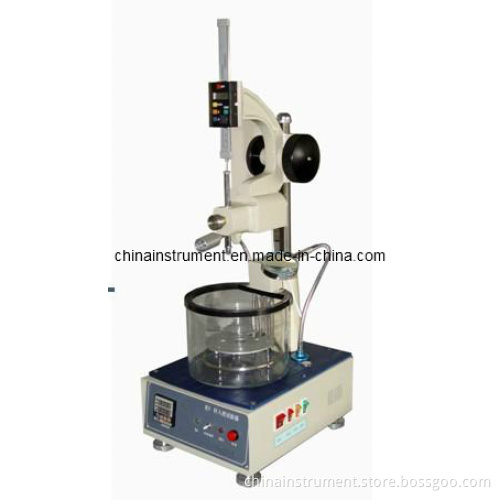

Gd-2801e1 Asphalt Needle Penetration Test and Core Penetration Testing Equipment

GD-2801E1 Asphalt Needle Penetration Test and core penetration testing
The Asphalt Needle Penetration Test and core penetration testing is designed and made as per the National Standard GB/T4509 "Test Methods for Needle Penetration of Petroleum Asphalt", and T0604 "Asphalt Needle Penetration Test" in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine needle penetration of petroleum asphalt, modified asphalt, liquid petroleum asphalt and residues after evaporation of emulsified asphalt.
Technical characteristics and performance:
1. It integrates new design concepts on penetrometer all over the world. It is advanced, beautiful, and delicate;
2. The newly designed up and down assembly have coarse adjustment and fine adjustment, so it can be adjusted freely.
3. It adopts a newly designed heating structure. The heating and temperature measurement devices can be separated from the constant temperature bath, so it is easy to be operated.
4. Equipped with automatic temperature controller and a high precision temperature sensor, so it can conveniently set controlling temperature and it is with high temperature controlling accuracy.
Technical parameters
1. Measurement range: 0~600 penetration;
2. Minimum scale division: 1 penetration;
3. Display mode: By a digital dial indicator of 0.01;
4. Temperature controlling mode: By a digital temperature controller;
5. Temperature controlling accuracy: 25± 0.1° C (Ambient temperature should not be higher than 20 ° C);
6. Heating power: 200 W;
7. Constant temperature bath: Made of harden glass;
8. Timing selection: 5 s or 60 s; Timing error is less than ± 0.1 s;
9. Standard needle: 2.5± 0.05g; As per GB/T4509.
10. Others: Equipped with cold light source and a magnifier, so it is convenient to be operated.
