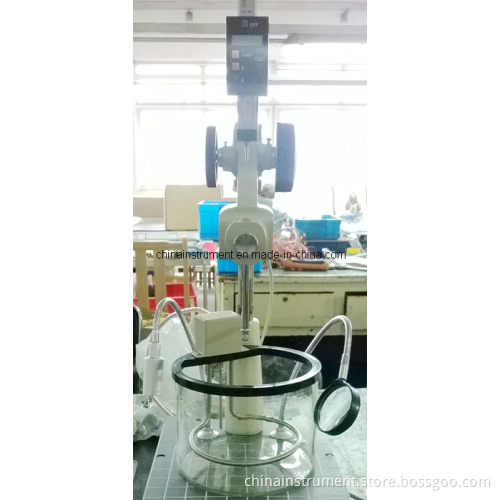

Gd-2801g Paraffin Wax Penetrometer

I. Brief Introduction
The instrument is designed and made as per the National Standard of People's Republic of China GB/T4985 "Test Methods for Penetration of Petroleum Wax". The penetration needle and other accessories equipped with the instrument can meet the requirements of GB/T4985.
The penetration of wax is expressed as the depth that a standard needle of 100 g vertically penetrates into a sample without measurable fraction in 5 seconds. It is used to evaluate the hardness of wax.
In general, the testing temperature for wax penetration test is 25 ° C. You can make measurement for needle penetration at a temperature in the range of 25~55 ° C. But you should report the test temperature if it is not 25 ° C.
The unit of wax penetration is 0.1 mm. It can be read directly from the display.
II. Main technical specifications and parameters
1. Measurement range: 0~600 penetrations
2. Timing device: You can select 5 s, 8 s, 10 s, 12 s, 30 s, and 60 s; Timing error is less than ± 0.1 s
3. Resolution: 0.01 mm
4. Penetration accuracy: ± 1 penetration
5. Heater power: 200 W
6. Temperature controlling accuracy: 25± 0.1 ° C (Note: The ambient temperature should not be higher than 20 ° C)
7. Temperature controlling mode: By a high precision digital temperature controller
8. Constant temperature bath: Harden glass bath
9. Bath stirring: Automatically stirred by a magnetic stirring wheel
10. Standard needle: 2.5± 0.05 g, as per GB/T4985
11. Lifting holder: With coarse and fine adjustment functions; It is used to let the needle point just touch the sample surface
12. Others: Equipped with a cold light source and a magnifier; It is convenient for instrument operation
Remarks:
All instrument will be tested before leaving factory.
All instruments will be converted to English display.
All instruments have one year warranty.
