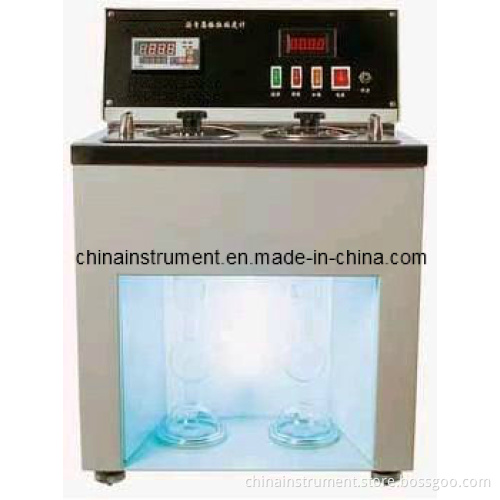

Gde-1b Engler Viscometer /Engler Viscosity Viscometer (Double Units)

GDE-1B Engler Viscometer /Engler viscosity tester (Double Units)

I Brief Introduction
The Engler Viscometer is designed and made as per the National Standard GB/T266 "Test Methods for Engler Viscosity of Petroleum Products" and the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is used to determine the ratio obtained by dividing the time of flow, in s, of 200 ml of material using an Engler viscometer at a selected temperature by a factor representing the time of flow, in s, for an equal volume of water at 20 ° C. The ratio is the Engler viscosity of the sample.
The instrument can make determination for 2 samples at the same time in the same temperature environment. It can also calculate the average value of these test results. It is the best instrument for Engler viscosity of petroleum products and bituminous materials determination.

II Technical parameters
ModelGDE-1B Petroleun products engler viscometer(Double Unit)
Power supplyAC 220V± 10%, 50Hz
Standard water value51± 1 s
Temperature range0~100° C
Temperature controlling accuracy± 0.1° C
Engler viscometer thermometeras per GB/T514
Graduated flask200± 0.2ml (50± 0.2ml for bituminous materials)
Inner containerMade by stainless steel
TimerMax is 9999 s
Timing modetiming by a LED
Heating power700 W
Ambient temperature-10~+40° C
Relative humidity≤ 85%
Total power consumptionnot more than 800 W
Dimension64*49*45cm
Weight40kg

III Characteristics
1. Engler viscomter for petroleum product;
2. LCD display;
3.51+/-1s.
4. Favorble price
