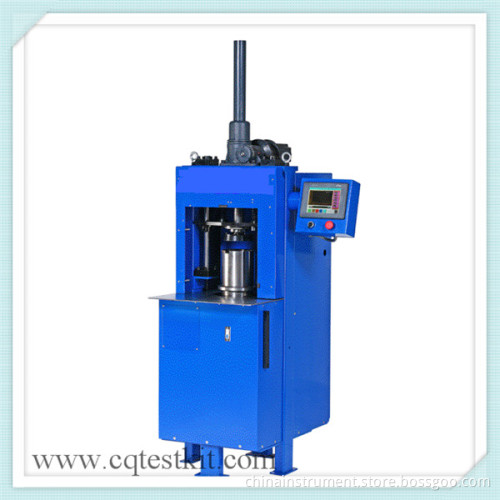

Gd-Xy150 Rotatory Compactor

Summary:
This instrument is designed and made as per industrial standard JT/T 724-2008 Gyrator Compactor and T 0736-2011 in JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is used to do preparation for asphalt samples 150mm or 100mm.
Main Technical Features:
V Single chip microcomputer technology. LCD display. Man-machine dialog interface. All test procedures can be controlled automatically.
V All rotating components are covered. Safe to use.
V Two compaction mode: Automatic and manual. The test procedures can be finished after setting parameters under automatic compaction mode. Each procedure or status can be controlled under manual compaction mode.
V Two selectable sample: 100mm or 150mm. Rotation angle can be switched between 0.5degreeand 0degree. Angle adjusting accuracy is 0.01degree.
V Special mould ejector. Convenient to use.
Main Technical Specifications:
V Pressure range: (100~1000)kPa, continuously adjustable
V Rotation times: Foreward(as per setted compaction angle): (0~1000)times
V Reversed(compaction angle is 0degree): (0~500)times
V Range of gyrate compaction angle: 0.5degree~0degree, increase as every 0.01degree (Calibrated at 16degree+/-0.02degree internal angle when leaving factory)
V Accuracy of gyrate compaction angle: <0.01degree
V Movement range for compactor: (0~250)mm
V Movement accuracy for compactor: <0.01mm
V Rotation speed: (30+/-0.5)RPM
V Rated speed of motor: 1800RPM
V Overall Height: 1900mm
V Dimension:
V Main unit (Push rod is included): 940mm*890*mm*2140m
V Mold ejector (Handle is not included): 356mm*308mm*800mm
V 1Net weight: 370kg
1Gross weight: 410kg
