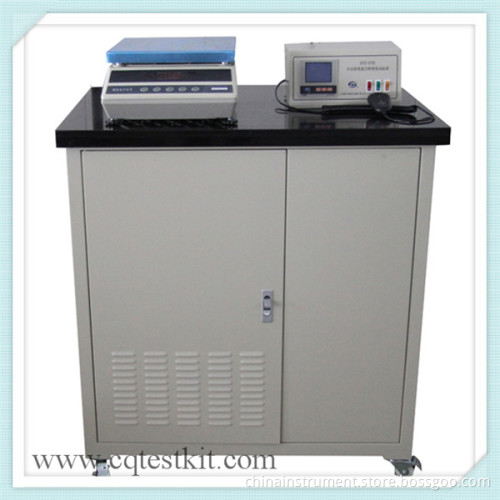

Gd-0705 Compacted Bituminous Mixtures Density Tester

GD-0705 Compacted Bituminous Mixtures Density Tester
Summary:
V This instrument is designed and made mainly as per T 0705-2011 Standard Test Method for Density of Compacted Bituminous mixtures(Surface Drying Method) in JTG E20-201Meanwhile it gives consideration to T 0706-2011 Standard Test Method for Density of Compacted Bituminous Mixtures(Wax Sealing Method) in JTG E20-201It is used to determine the density of compacted bituminous mixtures.
Main technical features:
V This instrument is a kind of multi-purpose tester. It can meet the sampling requirements and calculate the density and specific gravity according to surface drying method, wax sealing method and volumetric method in JTG E20-201
V It adopts micro-computer to control temperature in water bath. High-accuracy electric balance is equipped. The measurement range is wide and accuracy is high.
V The overflow water tank adopts stainless steal metal. It can refill and stabilize water level automatically. Electric lifting structure and handspike motor are used. It can reduce labor intensity effectively.
V The working table adopts natural marble material. It provides a stable bench for electric balance.
Main technical specifications:
V Effective volume of water bath: 83L
V Power of refrigeration compressor: 1/4P
V Power of heating element: 3kw
V Flow rate of circulation water pump: 10L/min
V Electric balance Max. Measurement: 15kg Sensitivity: 0.1g
Temperature control accuracy of water bath: (25+0.5)C
