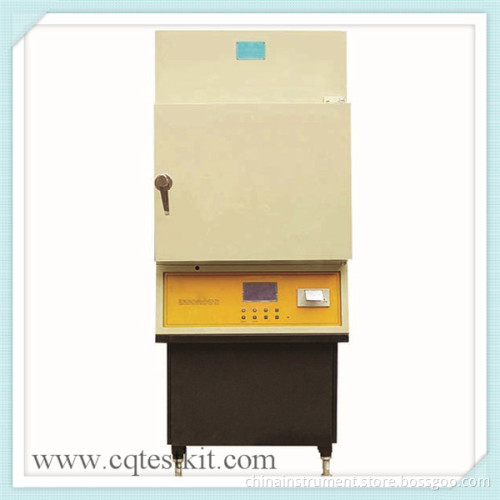

Gd-6307 Asphalt Content Tester, Bitumen Content Testing Equipment

GD-6307 Asphalt Content Tester
Summary:
V The combustion method is a new type method to the asphalt content. It has advantages such as environment protect, safety, nicety and shortcut ect. It is designed and produced asper standard of NCAT(ASTM D6307, AASHTOTP53-95, and BSDD250). It can meet requirements of T0735-2011 in JTG E20-2011 and JT/T 67
Main technical specifications:
V Max weight of sample: 4000g
V Commendable weight of sample: 1000-1500g
V Balance accuracy: +0.1g
V Range: 10Kg
V Combustion chamber: 350*440*330mm
V Max working temperature of combustion chamber: 800º C
V Standard working temperature: 540º C
V Auto-check test ending, test accuracy could be 0.1%
V Testing time: 20-30min
V Power supply: Electric voltage: (380+10%)V, three-phase(starlike), current<20A
