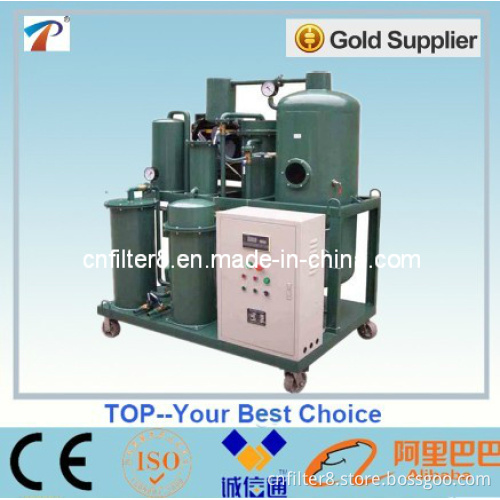

Contaminated Hydraulic Oil Filter Machine (TYA)
  • Contaminated Hydraulic Oil Filter Machine (TYA)
Contaminated Hydraulic Oil Filter Machine (TYA)

Contaminated Hydraulic Oil Filter Machine (TYA)

Get Latest Price
Payment Type:
L/C, T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Chongqing, China
Payment Type: L/C, T/T
Product Description
Product Description

Product Description

Hydraulic oil filter plant
1.removes 100% of free water
2.Easy to connect, simple to operate
3.environmentally friendly



Hydraulic oil filter plant reduce the procurement and disposal costs,competitive price,energy saving



Application:
TYA Series is specifically designed for purifying hydraulic and Circulating Oil, lube oil.


Feature:

Ideal for hydraulic oil and circulating oil, lube oil purification

Eight models are available to accommodate various flow rates

Continuously removes free water down to 50 ppm or less

Fluid cleanliness grade (NAS) to 6 or better

Dual water and particulate removal

Coalescence-separation technology

Double-infrared fluid level controller

A trinity of interlocked preventive device

Carbon fiber infrared heating system

Automatic back-flushing system.

Contaminated Hydraulic Oil Filter Machine (TYA)

Parameters Unit TYA-10 TYA -20 TYA -30 TYA -50 TYA -100 TYA -150 TYA -200 TYA -300
Flow rate L/h 600 1200 1800 3000 6000 9000 12000 18000
Vacuum degree Mpa -0.06 ~- 0.095
Working pressure Mpa ≤0.4
Temperature degree  C 0~100
Power supply   3Phase, 380V, 50Hz(or as needed)
Working noise dB(A) ≤75 ≤75 ≤75 ≤78 ≤78 ≤78 ≤80 ≤82
Electric heating power kW 36 40 45 72 80 90 120 135
Total electric power kW 38 42 47 75 87 101 135 147
Inlet (outlet) caliber mm 25 25 25 32 42 50 50 60
Size mm 1500x1000x 1600 1500x1050x 1600 1500x1050x1650 1600x1150x1700 1750x1150x1750 1900x1600x1950 1950x1600x1950 2100x1600x2000
Weight Kg 350 380 400 450 550 650 700 750
