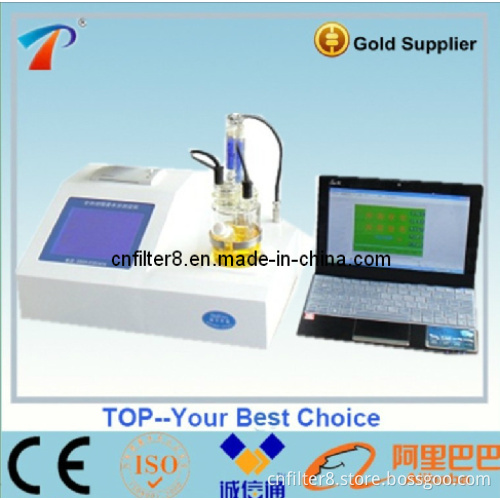

Automatic Karl Fischer Oil Water Content Testing Equipment (TP-2100)

Application:
The Determinator adopts the global recognized classical moisture testing method— Karl Fischer Coulometric Method. This method is the most concentrated and accurate method, with advantages of high accuracy and low cost. As a universal standard and analyzing method, it can quickly analyze the moisture content in liquid, solid and gas and directly display testing results, with testing range from 0.0001%(1ppm) to 100%. Therefore, this testing method has been widely used in institutions and enterprises of petroleum, chemical industry, power, pharmaceuticals, pesticide, railways, research, etc.
Whole testing process is automatically controlled by the determinator itself, during which auto-stirring and analyzing would be finished within 60seconds, and results would be displayed directly. Totally closed titration system avoids damage to operator from reagent. Equipped with 500ml Karl Fischer Reagent, which could test about 1000 times sample continuously, completely avoiding big deviations of other moisture testing method and thus improving quality index of products.
Features:
1. Equipped with powerful Itanium and double CPU; Advantages of direct A/D conversion of testing electrode data.
2. Equipped with 7 inch color touch LCD with Chinese display. The determinator has function of reagent failure prompt, convenient to extend service time of reagent.
3. Completely closed titration system avoids direct touch between people and agent as well as influence of environmental humidity.
4. Outer shell is made of high-quality cold-rolled steel plate with electrostatic sprayed surface, anti-corrosion and easy to clean.
5. Auto-control and compensation of electrical current via MCU contributes to quick balance of reagent.
6. Auto-control electrolysis current within 430mA ensures high sensitivity and fast analyzing speed.
7. Preinstalled with cubature (including 3 pieces of formula), statistical calculation (including average calculation, standard deviation calculation and rate of change calculation) and elementary arithmetic, with the advantages of auto-analysis and calculation.
8. Determinator automatically tests sample, analyzes and displays results and calculates the average value of several times of test.
9. Infinite capacity of results storage is convenient to consult history testing data whenever necessary.
10. Automatically calculate and print below content: Ug / ppm / percentage / mg/L / sample number / experimenter / testing date, etc.
11. Network management is available via connection with laptop and microcomputer communications through USB or RS232 interface.
12. Operation via Multilanguage display is available. Determinator programs can be upgraded if accordingly if related national standard is revised.
