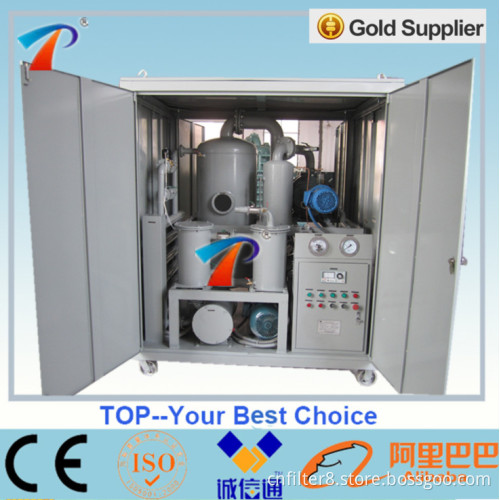

Weather Proof Transformer Oil Dehydration and Purification Plant

This Double Stage Transformer Oil Filter Machine is brought to the clients at competitive prices. The Double Stage Transformer Oil Filter Machine undergoes rigorous quality control tests to make it devoid of all defects.

The machine is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, dielectric oil and so on. It also can be used for filtration of more than 110KV substation live line work onsite. Meanwhile, as the bridge-type vacuum linking system, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling

Attributes:

Capacity ranges from: 1000 LPH to 30000 LPH

Inlet Stainless Steel Filter is easy to clean and used to catch hold coarse dirt

Standard efficiency of 0.5 / 1 Micron after fine filter

Heat exchange through very low specific power electric heaters

To improve the vacuum pumping speed, vacuum pump set in combination with rotary vane vacuum pump and roots pump are provided

Easy to operate

Compact equipment is also provided with pneumatic wheels for easy transport on road

Duplex 3D stereo-evaporation technology, eliminating the liquid water very effectively

Distinctive removing impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power

UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effect

Carbon fiber infrared heating system that can make the oil contains zero sum of ethyne after treatment

adopts the double-infrared liquid automatic controller, sensitive automatic pressure protector and the high effective equipment for degas, so it is easy to operate

Optional Features:

An exhaust condenser to measure the extracted water

Condenser is equipped to settle the most volatile oil fractions which might distil back to the column

Digital temperature measurement

Digital precision vacuum gauge

Digital flow meter

Digital in line moisture content meter

Ionic reaction columns to remove the acidity from the oil

Audio / Visual fault annunciation System

PLC control system

Mobile Trailers can be provided

Fully-enclosed and Semi-enclosed for weather-proof are available

Recommend test equipment
1. Transformer oil Breakdown voltage Tester ( BDV test kit) series IIJ-II<o: p>

2. Acidity tester model ACD-3000I<o: p>

3. Karl Fischer Water content Tester Model TP-6A / model TP-2100<o: p>

4. Fully automatic Interfacial Tension Analyzer model IT-800<o: p>

5. Gas-Chromatography transformer oil gas analyzer model DGA2013-1<o: p>

6. Multi-functional Vibration tester model TYD-2000<o: p>

7. Automatic Freezing Point & Pour Point Tester model PT-2000<o: p>

8. Kinematic Viscosity tester model VST-8 /model VST-2000<o: p>

9. Flash point tester (open cup) model TPO-3000<o: p>

10. Flash point tester (close cup) model TPC-3000<o: p>

11. TAN-DELTA TESTER, 10kV Capacitance and Dissipation Factor Test Set model CDEF<o: p>

12. Automatic Freezing Point & Pour Point Tester model TP-501Z<o: p>

13. Determination of foaming characteristic of lubricating oil model SD-12579<o: p>

14. Earth resistance tester model HYDW-II <o: p>

15. Coil Resistance Tester (TPZC-40)<o: p>

16. CT/PT tester model TPVA-404<o: p>

17. Transformer turn ratio tester model HYG-II<o: p>

18. Relaying Protection Tester model TPJB-III<o: p>

19. Digital Grounding Resistance Tester model TP2571-II<o: p>

20. DC High Voltage Generator model ZGF<o: p>

21. Underground water/gold detector model TP-UWD<o: p>
