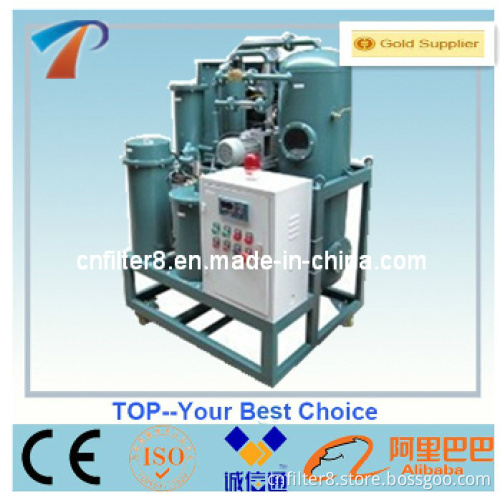

Zy Portable Vacuum Insulation Oil Purification Equipment, with High Efficiency, Low Cost, Move Conveniently

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing, China
Payment Type:	L/C, T/T

Product Description

Specifications

portable vacuum insulation oil purification equipment
1.remove water,gas,impurities quickly
2.advanced technology and systems
3.quickdeliver

ZY Portable Vacuum Insulation Oil Purification Equipment, with High efficiency, Low Cost,Move Conveniently

Application:

Series ZY high vacuum insulating oil purifier is specially designed for purification of aging transformer oil, mutual inductor oil, switch oil, capacitor oil as well as for other electrical insulating liquids. The process maintains the oil's dielectric strength, removes free, soluble water, air-gases and particulate matter.

Features:

1. duplex-stereo film evaporation technology, dewatering, degassing efficiently, remove water less than 5ppm, gas less than 0.1% and impurities less than 1 micron

2. efficient heating system, heating uniformity, safe, reliable, and energy-conserving

3. double-infrared liquid level sensor, pressure protective system, safe operation

4. small, light, move conveniently

5. can live operated with electricity

6. can be as an independent vacuum source for vacuum oiling and drying.

Advantages:
Series ZY is efficient and economical insulating oil purifier. Doplex-Stereo film evaporation technology, unique and advanced dewatering, degassing components, making working efficiency is 3-5 tims than traditional oil purifier. Machine adopts interlocked protective system, double-infrared liquid level sensor and pressure protective system to make sure the machine work unattended, operation easy, safe and reliable.

Two types for selection

single-stage, high vacuum system
double-satge, high vacuum ystem

diffenerent versions in the convenience of different usgae:

ZY-Portable, small, light, easy to move
ZY-Enclosed, weather proof, dust proof
ZY-Trailer, conveniently move long distance in the field.

Our oil filtration machine:
Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYD Double High Vacuum Transformer Oil Purifier
Series ZYB Multiply-Function insulating oil treatment machine
Series TY Turbine Oil Purification Apparatus
Series TYA Lubricating oil/ hydraulic oil purification unit
Series TYB Portable light Fuel oil purification machine
Series TYD Vacuum dehydrator
Series TYF Phosphate ester fire-resistance oil purifier
Series PL Plate pressure oil purifier
Series TYD Vacuum dehydrator
Series EFD Explosion protection filtration machine
Series BAM Press filtration system
Series ZKCC Vacuum pumping device
Series COP Cooking oil purification machine
Series CYS Centrifugal oil purification machine
Series JL Portable oil filtering and oiling machine
EOR series waste engine oil recycling system
Our oil tester/ analyzer:
Series IIJ-II Insulating oil breakdown strength tester(oil BDV tester)
Series HTJS-H Insulating oil dielectric tester (dielectric loss tester for insulating oil)
Series HTJS-V Tan-Delta Tester (anti-jamming dielectric loss tester for HV electrical equipment)
Series TP-3A Water content tester/ moisture sensor
Series TPV-8 Viscosity analyzer
Series TPC-2100 Flash point analyzer (close cup)
Series TPO-2100 Flash point analyzer (open cup)
Series CL-3 Interfacial tension analyzer

key searching words:

oil purification, oil filtration, oil processing, oil separation, oil recycling, oil filter, oil purifier, oil treatment, oil regeneration, oil restoration, oil filtering, waste oil disposal, oil reclaiming, waste oil management, energy saving, oil reconditioned, oil reconstituted, oil restituting, oil recovering) oil purification, oil filtration, oil processing, oil separation, oil recycling, oil filter, oil purifier, oil treatment

Parameters		Unit	ZY-6	ZY-10	ZY-20	ZY-30	ZY-50	ZY-100	ZY-150	ZY-200	ZY-300
Flow rate		L/h	360	600	1200	1800	3000	6000	9000	12000	18000
Vacuum degree		MPa	-0.06~-0.095
Working pressure		MPa	≤0.3	≤0.4	≤0.4	≤0.4	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5
Temperature range		°C	20 ~ 80
Continuous working		H	150
Power supply			Three phase,50HZ ,380V(or as per customer requirement)
Working noise		dB(A)	60	61	63	70	70	75	70	70	70
Heating power		kW	9	11	13	15	30	48	58	70	85
Total power		kW	9.7	12.5	14.5	16.5	33.5	53	65	76	94
Oil inlet/outlet		mm	φ20	25	φ25	φ25	φ32	φ42	φ50	φ50	φ60
Weight		Kg	150	230	250	270	300	500	700	900	1100
Size	L	mm	970	1050	1100	1150	1200	1600	1600	1800	1900
	W	mm	630	750	850	900	950	1000	1100	1200	1200
	H	mm	900	1300	1400	1450	1500	1800	1800	1900	1900

Guarantee Value

Item	Guarantee indexes
Moisture content	≤5PPM
Impurity size	≤1 micron
Gas content	≤0.1%
Breakdown voltage	≥70
