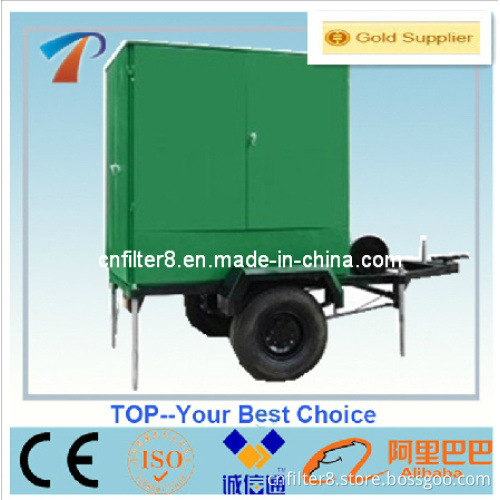

Trailer Mounted Transformer Oil Regeneration System (ZYM) Improve Oil's Property, Restore Color

Trailer Mounted Transformer Oil Regeneration System (ZYM) Improve  Oil's Property,Restore Color

Specifications:
1.regenerate the deteriorated oil
2.restore color
3.enhance the property
4.safe and reliable

Application:
This plant is applied to regenerate and purify the used insulation oil such as transformer oil, switch oil, mutual inductor oil and so on. It can remove water, gas, particle, free carbon, deep oxides and so on. Also it can recover the oil color. After purification, the used insulating oil can reach international standard and recover its original function.

Features
1.Besides the common vacuum oil purifier's function of dewatering, degassing and eliminating impurities, this machine can regenerate the seriously deteriorated oil by removing the polarity materials, such as the deep oxides, free carbon in the oil effectively. It can make the seriously deteriorated oil reach to the normal index like anti-oxides, acid- alkali water-solubility.

2.Three ways of using: the vacuum dewatering, degassing, removing impurities system can work independently, so dose the regeneration oil system, and also they can work at the same time.

3.The performance and lifetime of insulating oil will improve and extend awfully after purification and regeneration.

Advantages:
It can not only removing the water, gas and impurities which mixed in the oil, but also can improve many values reach to the national standard such as the acid value, PH value.
Meanwhile, it improves the voltage-withstand value through filtering the polarity materials like free carbon, deep oxides and so on.

Working processing:

1.When the oil machine is processing, under the difference of in-out oil pressure,
the oil entry into the pre-filter. And then the larger impurities is filtered.
2.The remaining oil goes into heater to exchange heater.
After heating, the oil in the low vacuum separator forms fog and then membrane which extend the contact area more than hundreds of times.
Under the high temperature, high vacuum, high pumping speed condition, the water in oil rapidly evaporates and pumps out.
3.The oil after dewatered and degassed pulls into secondary filer through the oil drain pump to separate the impurities.
4.By the working of pressure, the oil goes into fine filter.
The fine filter is made of composite microporous material which can effectively remove superfine particles in the oil.
5.The oil out flowed by outlet is the cleaned oil.
6.From so far, the whole purification process is completed.

After -sales Service
1. Two years guarantee for product quality. ( except man-made damage).
2. Free training, installation and testing are available.
3. Lifelong maintenance Service
4. Spare parts supply


Our products line are as following:
1. ZY series vacuum transformer oil purifier
2. ZYA series vacuum automatic transformer oil purifier
3. ZYB series vacuum transformer oil regeneration purifier
4. ZYD series double-stage vacuum transformer oil purifier
5. ZYD-I series double-stage transformer oil regeneration purifier
6. ZYD-M series trailer-mounted transformer oil purifier
7. TY series vacuum turbine oil purifier
8. TYA series vacuum lubricating oil purifier
9. TYB series coalescence-separation oil purifier
10. TYC series vacuum lubricating oil regeneration purifier
11. CYA series centrifugal oil purifier
12. EOR series waste engine oil recycling system
13. PL series plate and frame oil filter press
14. JL series portable oil purifier
15. BZ series transformer oil regeneration device
16. IIJ-II series transformer oil dielectric strength tester
