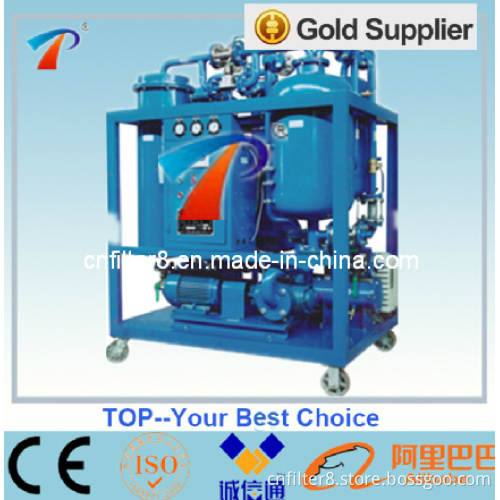

Good Quality Waste Steam Turbine Oil Dehydration Machine (TY) , Stainless Steel Materials

Specifications

Good quality waste steam turbine oil dehydration machine(TY),stainless steel materials

Application:

Series TY oil purifier is widely used for filtering turbine lubricating oil in electric power, metallurgical, chemical engineering industries. It is good at emulsion breaking, dehydration and removing soap, gelatin, acid, pigment and metal particulates in emulsified turbine oil and low-viscosity lubricating oil as well as turbine oil used in other machinery and electric power equipment.

Features:
1.With special polymeric materials as filter medium and vacuum separating technology, the filtration machine can  rapidly and efficiently break emulsification and remove water, gas and impurities from oil to make the oil's clean.

2.On-line filtration can be carried out with turbine or water turbine.

3.Duplex stereo flash evaporation technology

4.Temperature controller to protect the machine.

5.Multi-stage precision filtration system; mesh filtration combined with molecule adsorption technology.

6.Efficient heating system to make heating uniformity and decrease power consumption.

7.Installed oil-level floating ball and double-infrared liquid level automatic controller to control the oil level and avoid the oil leaking.

8.Equipped with pressure protective system and interlocked protective system to connect oil pump, heater and liquid level controller. If there has any fault, this oil filtering machine will be power off automatically.

Special features:
This Oil Purifier can remove contamination down to less than 5 micron, water content down to 60 PPM, air & gases down to 0.1% and lower oxidised molecules of oil from turbine oils.

Removal of free and emulsified water prevents formation of varnish and bacteria. Turbine oil is 98% base oil and it has approximately 2% additives. By keeping the oil free from water and contamination down to less than a micron,  TY Series Oil Purification Systems protects the turbine oil additives, which can then continue to perform their essential functions for a very long time thereby increasing oil life tremendously.

Relative Information

1.Maintenance

A. check and adjust after oil purifier works for a period of time

1. all the electric control apparatus

2. temperature controller

3. oil seals and motor couplings

4. clean filter elements, check pumps and motors

5. all the pipes for leaking

B. Clean the motor and change the lubricating grease

C. Check and add specified lubricating oil to vacuum pump,

D. If oil purifier is not in use for one month or more, put it on a dry, flat ground, close all valves and electric cabinet, cove the whole machine with canvas

2.Customer Service

INSTALLATION

COMMISSIONING

COMPLETE TURNKEY APPLICATIONS

SPARE PARTS

SERVICE AND MAINTENANCE SCHEMES

TECHNICAL SUPPORT NETWORK
