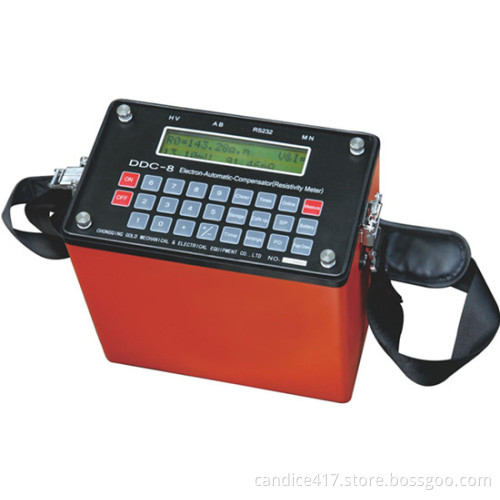

DDC-8 Electronic Auto-Compensation(Resistivity)Instrument
  • DDC-8 Electronic Auto-Compensation(Resistivity)Instrument
DDC-8 Electronic Auto-Compensation(Resistivity)Instrument

DDC-8 Electronic Auto-Compensation(Resistivity)Instrument

Payment Type:
T/T, L/C
Incoterm:
FOB
Min. Order:
1
Min. Order:
1
Delivery Time:
10 Days
Transportation:
Ocean, Land, Air
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Supply Ability: 10 Set/Sets per Month
Payment Type: T/T,L/C
Incoterm: FOB
Certificate: ISO9001
Transportation: Ocean,Land,Air
Product Description
Product Description

Main Features:

Microcomputer controlled;

Direct-reading resistivity;

Various electrodes arranging mode;

Data protect against power-failure.

Main Application:

By utilizing the apparent resistivity parameters, it is widely used in hydrology, environmental protection, engineering geophysical exploration, metal and non-metal mineral resources exploration.

By applies to Electrical Prospecting such as Vertical Electrical Sounding, Electrical Profiling, Charging Method and Spontaneous Potential Method, etc. on ground and in trench.

Main Technical Specification:

Model & Name

DDC-8 500M Electronic Auto-Compensation(Resistivity) Instrument

Max. Power Supply Voltage:

700V

Max. Power Supply Current:

3A

Voltage Measuring Range:

±3000mV

Voltage Measuring Accuracy:

±1.5%±0.1mV

Current Measuring Range:

0.1mA~3000mA

Current Measuring Accuracy:

±1.5%±0.1mA

SP Compensation Range:

-1000mV~+1000mV

Instrument Input Impedance:

≥30MΩ

Operating Temperature:

-10°C~50°C

Machine Size:

244×154×237mm
