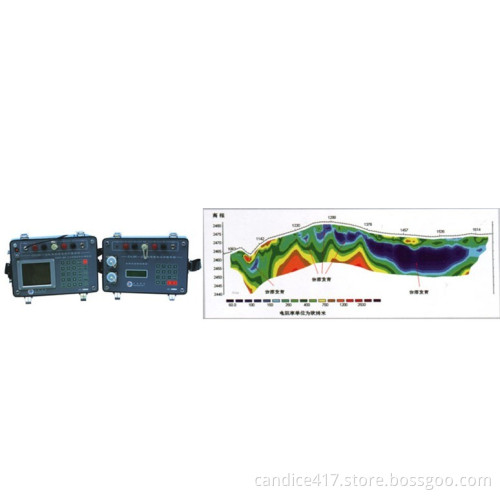

DUK-2A Multi-Electrode Resistivity Survey System

Main Application:
Widely used for high-resolution research,tomography and monitoring applications.Coal mining gobs,caves of custer area,geological disasters survey like landslides other geological disasters.High resolution engineering geological exploration like factory foundation,highways,bridges,railways,civil engineering,hydrology,engineering,enviromental.
Metal and non-metallic mineral resources exploration and geothermal exploration.

Main Features:

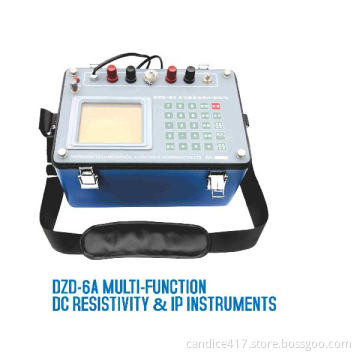

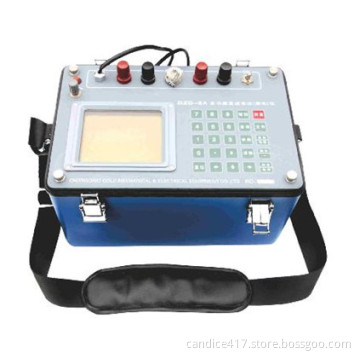

Multiple function in one machine:The instrument has four functions including long lead IP instrument,2D high density resistivity meter,2D high-density IP instrument,and medium-power short lead transmitter.Easy for Operation:The instrument adopts all-digital automatic measurement,thus can execute automatic compensation for spontaneous potential,drift and electrode polarization.By adopting large screen LCD display in English characters,more than fourteen types of wiring working mode can be directly displayed in high-density measurement mode;in DZD-6A stand-alone mode,nine types of electrode arranging methods can be directly displayed;meanwhile,real-time curve display can be realized during working.

Main Specification:

Conversion Electrode 60 channels or 120 channels
Operating modes LCD display,man-machine dialogue operation
Maximum Allowable Current 2A
Maximum Withstand Current 500V
Insulating Property 500MΩ
Working Temperature -10℃ to +50℃,95%Rh
Volume 365×269.5×169mm(60channels),324×211×258mm(120 channels)
Weight 7kg(60 channels),8.5kg(120 channels)
