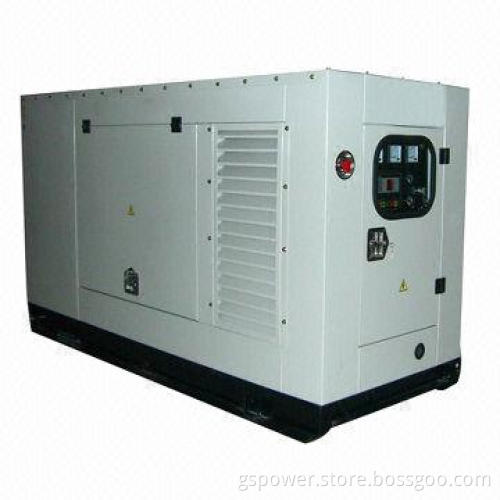

350kW Silent Generator for Cummins, 1500rpm Rated Speed

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Prime power/capacity: 350kW/437.5kha

Stable voltage regulation:≤±1%

Standby power/capacity: 400kW/500kHz

Voltage fluctuation: ≤±0.5%

Power factor: COSΦ0.8

Transient voltage regulation: +20% to 15%

Rated output voltage: 400/230V

Stable voltage time: ≤1S

Rated current (prime/standby): 631.4/721.6A

Stable frequency regulation: ≤±1%

Rated speed: 1500rpm

Frequency fluctuation: ≤±0.5%

Rated frequency: 50Hz

Transient frequency regulation: +10% to 7%

Start: auto/recoil

Stable frequency time: ≤3s

Fuel: 0#

Oil consumption (100% loading): 209g/kWh

Net weight: 4780kg

Signal-to-noise ratio (7m):70dB

Dimensions: 4150x1700x2000mm

Diesel engine:

Brand: Cummins

Start: 24V DC electronic

Producing area: Chongqing and China

China cooling: enclosed water cycle

Model: KTA19-G3

Oil supply: DI

Cylinder: 6

Speed regulation: electron

Bore x stroke: 159x159mm

Air suction: TCI

Compression ratio: 14.5:1

Overload capacity: 110%

Structure: inline
