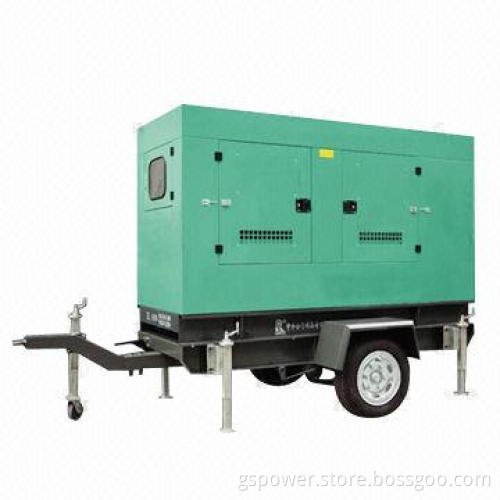

Water-cooled Generator Set, Movable and Trailer Station

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Prime power/capacity: 250kW/312.5kVa

Stable voltage regulation: d±1%

Standby power/capacity: 280kW/350kVa

Voltage fluctuation: d±0.5%

Power factor: COS¦=0.8

Transient voltage regulation: +20% to -15%

Rated output voltage: 400/230V

Stable voltage time: d1s

Rated current (prime/standby): 451/505A

Stable frequency regulation: d±1%

Rated speed: 1,500rpm

Frequency fluctuation: d±0.5%

Rated frequency: 50Hz

Transient frequency regulation: +10% to -7%

Start: auto/recoil

Stable frequency time: d3s

Fuel: 0#

Oil consumption (100% loading): 208g/kwh

Net weight: 4,000kg

Noise 7m: 80dB

Dimensions: 3,300 x 1,200 x 2,600mm

Diesel engine:

Brand: Cummins

Start: 24V DC, electronic

Producing area: Chongqing, China

Cooling: enclosed water cycle

Model: NTA855-G2

Oil supply: DI

Cylinder: 6-speed

Regulation: electron

Borex stroke: 140 x 152mm

Air suction: TCI

Compression ratio: 14.0:1

Overload capacity: 110%

Structure: in-line

Rotate speed: 1,500rpm

Alternator brand: Marathon
