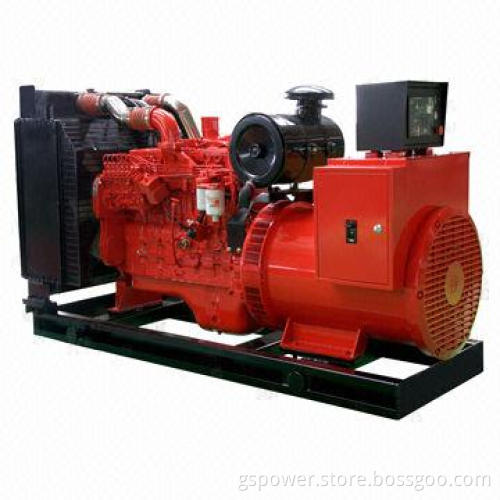

90kW/100KVA Diesel Generator Set with Cummins Engine and Marathon Alternator, 50Hz Frequency

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	FOB, T/T

Product Description

Prime power/capacity: 80kW/100kVA

Stable voltage regulation: ≤±1%

Standby power/capacity: 90kW/113kVA

Voltage fluctuation: ≤±0.5%

Power factor: COSΦ0.8

Transient voltage regulation: +20 to 15%

Rated output voltage: 400 or 230V

Stable voltage time: ≤1s

Rated current (prime/standby): 144.3/162.4A

Stable frequency regulation: ≤±1%

Rated speed: 1500rpm

Frequency fluctuation: ≤±0.5%

Rated frequency: 50Hz

Transient frequency regulation: +10 to 7%

Start: auto/recoil

Stable frequency time: ≤3s

Fuel: 0#

Oil consumption (100% loading): 214g/kWh

Net weight: 950kg

Noise (7m): 85dB

Dimensions: 2150 x 730 x 1180mm

Diesel engine:

Brand: Cummins

Start: 24V DC electronic

Producing area: Xiangfan, China

Cooling: enclosed water cycle

Model: 6BT5.9-G2

Oil supply: DI

Cylinder: 6

Speed regulation: electron

Bore x stroke: 102 x 120mm

Air suction: TCI

Compression ratio: 17.5:1
