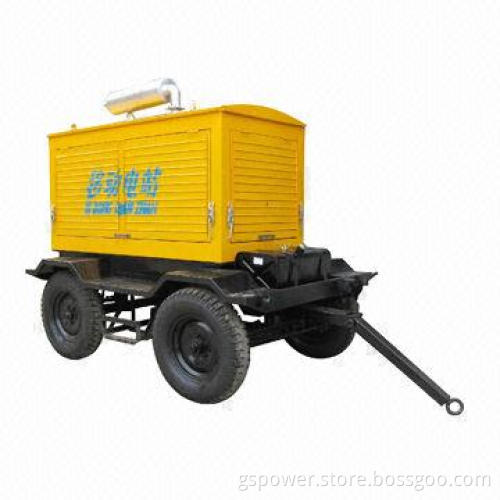

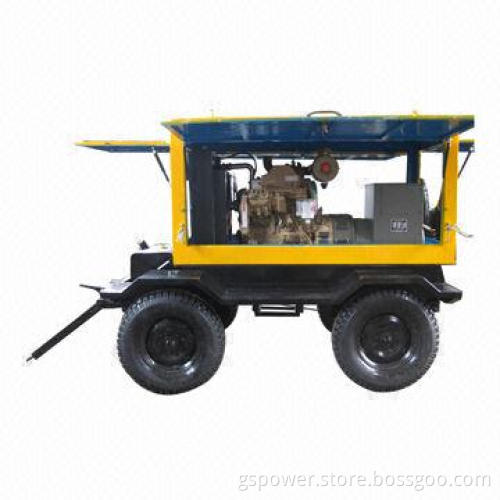

25-625kVA Trailer Power/Diesel Generator Set with Wheels, Cummins Engine/Silent Canopy, Movable
  • 25-625kVA Trailer Power/Diesel Generator Set with Wheels, Cummins Engine/Silent Canopy, Movable
  • 25-625kVA Trailer Power/Diesel Generator Set with Wheels, Cummins Engine/Silent Canopy, Movable
25-625kVA Trailer Power/Diesel Generator Set with Wheels, Cummins Engine/Silent Canopy, Movable
25-625kVA Trailer Power/Diesel Generator Set with Wheels, Cummins Engine/Silent Canopy, Movable

25-625kVA Trailer Power/Diesel Generator Set with Wheels, Cummins Engine/Silent Canopy, Movable

Get Latest Price
Payment Type:
FOB, T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: FOB,T/T
Product Description
Product Description
  • Features:
    • Consists of sound-resistant generator set and trailer
    • With four trailer structures
    • Can be installed at any place where the emergency power supplyis needed quickly
    • Eight hours operating base tank
  • Specification:
    • Output range from 25 up to 625kVA
    • Engine brands: Cummins
    • Alternator brands: Stamford, Marathon
    • Engine: closed water-cooled, electric starting, in-line,four-stoke, direct injection
    • Eight hours operating base tank
    • Sound or weather-resistant canopy is optional
    • Power supply: 50/60Hz, 1,500/1,800rpm, 0.8 power factor,three-phase and four wires alternating current output
    • Excitation: harmonic-phase compound excitation or brushlessexcitation
    • Voltage regulation: AVR automatic regulated
    • 1.0% voltage regulation (maximum) in static conditions
    • Protection class: IP22 or IP23
  • Control panel:
    • Standard engine instrumentation
    • Voltmeter with selector switch
    • Ammeter with selector switch
    • Frequency meter
    • Current transformers
    • Instrument fuses duly wired and ferrule
    • MCB of suitable rating with over-load and short-circuitprotection
    • With AMF control panel or with ATS (automatic transfersystem)
  • Packing: wooden or plywood case
  • Consists of sound-resistant generator set and trailer
  • With four trailer structures
  • Can be installed at any place where the emergency power supplyis needed quickly
  • Eight hours operating base tank
  • Output range from 25 up to 625kVA
  • Engine brands: Cummins
  • Alternator brands: Stamford, Marathon
  • Engine: closed water-cooled, electric starting, in-line,four-stoke, direct injection
  • Eight hours operating base tank
  • Sound or weather-resistant canopy is optional
  • Power supply: 50/60Hz, 1,500/1,800rpm, 0.8 power factor,three-phase and four wires alternating current output
  • Excitation: harmonic-phase compound excitation or brushlessexcitation
  • Voltage regulation: AVR automatic regulated
  • 1.0% voltage regulation (maximum) in static conditions
  • Protection class: IP22 or IP23
  • Standard engine instrumentation
  • Voltmeter with selector switch
  • Ammeter with selector switch
  • Frequency meter
  • Current transformers
  • Instrument fuses duly wired and ferrule
  • MCB of suitable rating with over-load and short-circuitprotection
  • With AMF control panel or with ATS (automatic transfersystem)
