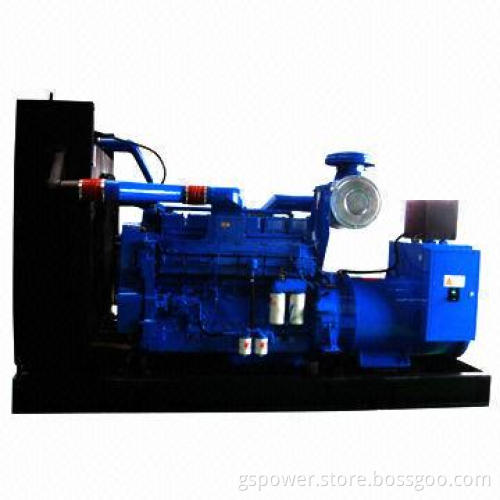

CHP with power of 500kW, gas fuel, cummins engine and marathon
  • CHP with power of 500kW, gas fuel, cummins engine and marathon
CHP with power of 500kW, gas fuel, cummins engine and marathon

CHP with power of 500kW, gas fuel, cummins engine and marathon

Get Latest Price
Payment Type:
FOB, T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: FOB,T/T
Product Description
Product Description
  • CHONGQING GS CHP500VB
  • Engine:
    • Base engine: KT38
    • Prime power: 500kW
    • Number of cylinders: 6
    • Standby power: 550kW
    • Air intake way: turbo-charged
    • Torque: 465Nm
    • Bore x Stroke: 159x159mm
    • Low idle: 750±50rpm
    • Displacement: 38L
    • Piston seed: 6m/s
    • Compression ratio: 13:1
    • Engine coolant flow: 2L/S
    • Engine speed: 1,500rpm
    • Exhaust flow: 435m³/h
    • Engine weight, dry: 4,200kg
    • Exhaust temperature: 675±25 deg. C
  • Alternator:
    • Model: Engga, EG315L-500N
    • Excitation: brushless
    • Frequency and speed: 50Hz/1,500rpm
    • Protection: IP23
    • Voltage: 400V
    • Insulation: H
    • Prime power: 450kW
    • Max.over speed: 2,160rpm
    • Power efficiency: 88.40%
    • Voltage regulation: ±1%
    • Stator winding: 2/3
    • Rated power factor: 0.8
  • Control system:
  • DSE, Smartgen, Harsen HK
  • CHP technical data:
    • Gas Fuel-CHP500VB
    • Emission standard : (NO x)mg/m³
    • Euro II
    • Electrical power: 500kW
    • Thermal power: 1,316W
    • Electrical efficiency: 35 to 40%
    • Thermal efficiency: 50 to 55%
    • Overall efficiency: 85 to 95 %
    • Natural gas consumption: ≤0.3m3/kW"h
    • Engine oil consumption: ≤1.02g/kWh
    • Remark: it is soften hard water from outside
    • Dimensions and weights:(silent type)
    • Size: L×W×H(mm), 4500×2300×2500mm
    • Size: L×W×H(mm), 4250X2600X2950mm
    • Net weight: 9,500kg
    • Net weight: 12,500kg
  • Base engine: KT38
  • Prime power: 500kW
  • Number of cylinders: 6
  • Standby power: 550kW
  • Air intake way: turbo-charged
  • Torque: 465Nm
  • Bore x Stroke: 159x159mm
  • Low idle: 750±50rpm
  • Displacement: 38L
  • Piston seed: 6m/s
  • Compression ratio: 13:1
  • Engine coolant flow: 2L/S
  • Engine speed: 1,500rpm
  • Exhaust flow: 435m³/h
  • Engine weight, dry: 4,200kg
  • Exhaust temperature: 675±25 deg. C
  • Model: Engga, EG315L-500N
  • Excitation: brushless
  • Frequency and speed: 50Hz/1,500rpm
  • Protection: IP23
  • Voltage: 400V
  • Insulation: H
  • Prime power: 450kW
  • Max.over speed: 2,160rpm
  • Power efficiency: 88.40%
  • Voltage regulation: ±1%
  • Stator winding: 2/3
  • Rated power factor: 0.8
  • Gas Fuel-CHP500VB
  • Emission standard : (NO x)mg/m³
  • Euro II
  • Electrical power: 500kW
  • Thermal power: 1,316W
  • Electrical efficiency: 35 to 40%
  • Thermal efficiency: 50 to 55%
  • Overall efficiency: 85 to 95 %
  • Natural gas consumption: ≤0.3m3/kW"h
  • Engine oil consumption: ≤1.02g/kWh
  • Remark: it is soften hard water from outside
  • Dimensions and weights:(silent type)
  • Size: L×W×H(mm), 4500×2300×2500mm
  • Size: L×W×H(mm), 4250X2600X2950mm
  • Net weight: 9,500kg
  • Net weight: 12,500kg
