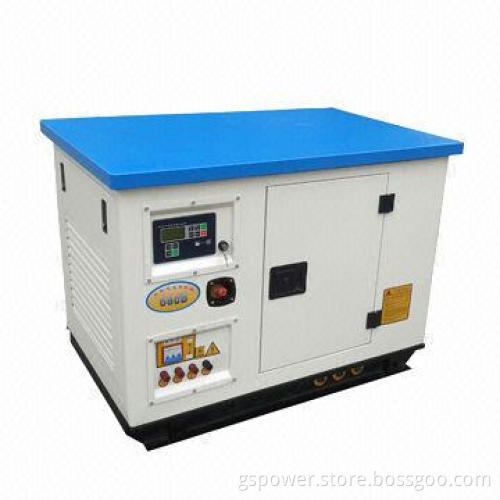

25kW CHP Gas Generator with Most Reliable Engine and Alternator

Get Latest Price

Payment Type:: FOB, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	FOB, T/T

Product Description

Engine:

Base engine: 4B3.9

Prime power: 25kW

Number of cylinders: 4

Standby power: 28kW

Air intake way: turbo-charged

Torque: 465N·m

Bore x stroke: 102 x 120mm

Low idle: 750 ± 50rpm

Displacement: 3.9L

Piston seed: 6m/s

Compression ratio: 16.5:1

Engine coolant flow: 2L/S

Engine speed: 1,500rpm

Exhaust flow: 435m³/h

Engine weight, dry: 330kg

Exhaust temperature: 675 ± 25°C

Alternator:

Model: Engga, EG160L-32N

Excitation: brushless

Frequency and speed: 50Hz/1500rpm

Protection: IP23

Voltage: 400V

Insulation: H

Prime power: 25kW

Maximum over speed: 2160rpm/min

Power efficiency: 88.40%

Voltage regulation: ±1%

Stator winding: 2/3

Rated power factor: 0.8

Control system: DSE, Smartgen, Harsen HK

CHP technical data:

Gas fuel: CHP25VB unit characteristic

Emission standard (NO x): mg/m³, Euro II

Electrical power: 25kW

Thermal power: 66kW

Electrical efficiency: 35 to 40%

Thermal efficiency: 50 to 55%

Overall efficiency: 85 to 95%

Natural gas consumption: d0.3m³/kW.h

Engine oil consumption: d1.02g/kWh

Remark: it is soften hard water from outside

Dimensions and weights: (open type)

Dimensions and weights: (silent type)

Size (L x W x H): 1,800 x 760 x 1,375mm

Size (L x W x H): 2,200 x 1,000 x 1,600mm

Net weight: 850kg

Net weight: 1,580kg
